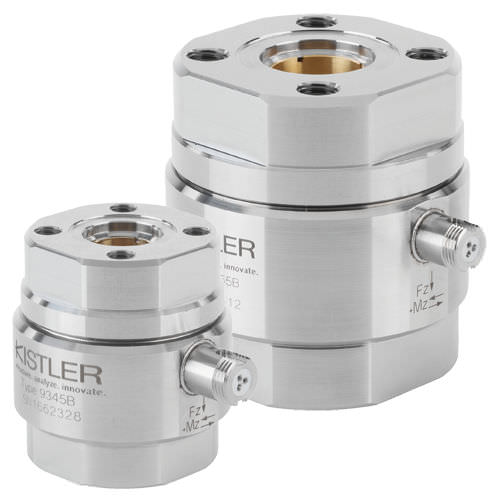

Force and torque sensor 9345B

Overview
Piezoelectric 2-axis force-torque transducers for measuring axial tensile or compressive force Fz and reaction torque Mz around the sensor axis. Designed for dynamic measurements on non-rotating shafts; high resolution enables detection of very small dynamic changes in large forces and torques.

Variants

• 9345B — 2-axis force and reaction torque transducer, Fz max ±10 kN, Mz max ±25 Nm (price: on request)

Downloads

• Datasheet: 2-Component Sensor Fz, Mz — 10 … 10 kN and –25 … 25 N·m (PDF)
• Manual: 2-Component Sensor Fz, Mz (PDF) — gated access

Technical specifications

• Product family: 93X5B
• Model example: 9345B — Fz max ±10 kN; Mz max ±25 Nm
• Sensor type: piezoelectric, 2-axis (force + torque)
• Measured quantities: axial force Fz (tensile/compressive) and reaction torque Mz
• Typical measurement ranges: Fz ±1 kN to ±20 kN; Mz ±2.5 Nm to ±200 Nm
• Resolution: high, suitable for detecting smallest dynamic changes
• Intended application: dynamic measurements on non-rotating shafts
• Documentation: datasheet and manual (PDF); some documents in English; manual may require gated access
