IP67 dynamometer 9119AA2

for load measurement

Product overview

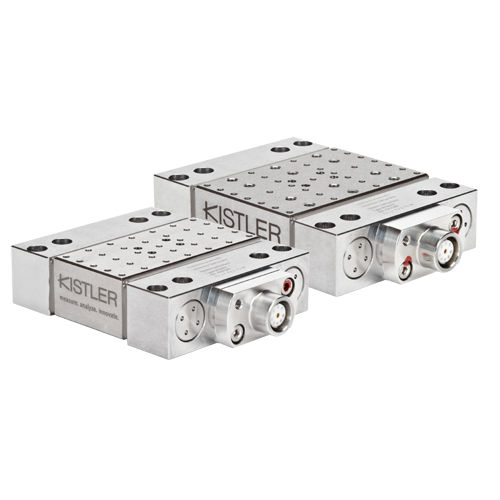

This multicomponent dynamometer measures the three orthogonal force components with very low threshold and high sensitivity, enabling measurement of extremely small forces.

Main features

• Piezoelectric multicomponent dynamometer, maximum forces Fx, Fy, Fz ±4 kN
• Cover plate 55 x 80 mm
• Natural frequencies: fn(x) 4.3 kHz, fn(y) 4.6 kHz, fn(z) 4.4 kHz
• Fischer 9-pin flange connector (Fischer 104)
• Degree of protection EN 60529: IP67

Available machine adapters and tool holders

• Machine adapters (right, left and straight) for disk-type turrets with VDI Ø16 mm, Ø20 mm, Ø25 mm and Ø30 mm
• Machine adapters for Coromant Capto C3, C4 and C5
• Machine adapter for HSK-T63
• Tool holders for external turning tools: 8 x 8 mm, 10 x 10 mm, 12 x 12 mm, 16 x 16 mm, 20 x 20 mm, 0.31" x 0.31", 0.38" x 0.38", 0.5" x 0.5", 0.63" x 0.63"
• Tool holders for internal turning tools: Ø8 mm, Ø10 mm, Ø12 mm, Ø16 mm

Applications
NVH testing, cutting processes and machining development, 3C electronics manufacturing and other force-measurement tasks in production and R&D environments.

Technical data (summary)

• Measuring ranges: -4 kN to 4 kN (Fx, Fy, Fz)
• Natural frequency: x 4.3 kHz, y 4.6 kHz, z 4.4 kHz
• Crosstalk (max): between axes typically -2 … 2 %
• Threshold: <0.002 N
• Output signal type: Charge (Piezoelectric, PE)
• Sensitivity: Fx -26 pC/N, Fy -13 pC/N, Fz -26 pC/N
• Connector: Fischer 104 9-pole (flange)
• Cable: not included
• Operating temperature range: -20 … 70 °C
• Weight: 1.35 kg

Certificates / Standards
Degree of protection EN 60529: IP67

Characteristics / technical specifications

• Model: 9119AA2 (MiniDyn)
• Product type: Multicomponent dynamometer (sensor)
• Maximum force per axis: ±4 kN
• Cover plate size: 55 x 80 mm
• Output: Piezoelectric charge output
• Preloaded sensor: Yes
• Threshold: <0.002 N
• Crosstalk (max): ±2 %
• IP rating: IP67
• Connector type: Fischer 104 9-pole (negative)
• Weight: 1.35 kg
