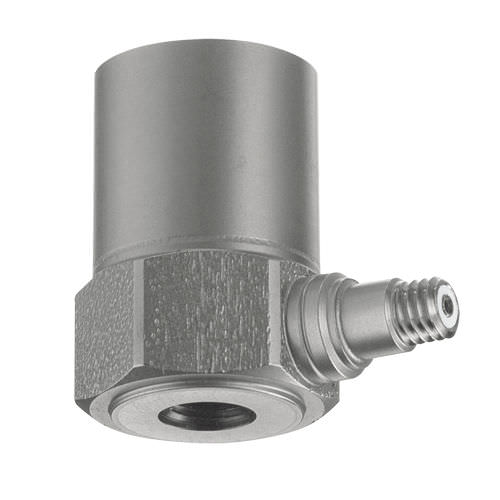

Piezoelectric accelerometer 8203A50

shearG-forceultra-light

Short description
Type 8203A is a high-impedance, charge-mode piezoelectric accelerometer designed for vibration measurement in environments that may experience elevated temperatures. A ceramic shear sensing element provides significant charge output suitable for conversion to an analog voltage via a charge amplifier. Kistler shear technology delivers high immunity to base strain, thermal transients and transverse accelerations. The connector uses a ceramic insulator to maintain stability at extended operating temperatures. Additional characteristics include high frequency response, lightweight construction and hermetic sealing.

Main features / advantages

• High-impedance, charge mode
• High temperature capability (up to 250°C)
• Ceramic shear sensing element
• Low transverse sensitivity
• Long-term stability at elevated temperatures

Variants

• 8203A50 — Piezoelectric accelerometer, charge mode, ceramic shear, high temperature, 1/4-28 mount, 2000 g

Technical specifications

• Model: 8203A
• Operating principle: Piezoelectric, charge mode (high impedance)
• Sensing element: Ceramic shear
• Typical measurement range: 1000 g (standard 8203A)
• Variant example: 8203A50 — 2000 g, 1/4-28 mount
• Temperature: High temperature capability, specified up to 250°C
• Output: Charge output (requires charge amplifier for voltage conversion)
• Transverse sensitivity: Low
• Mechanical: Lightweight construction; hermetic sealing
• Connector: Ceramic insulator for stability at elevated temperatures
• Performance: High frequency response; high immunity to base strain and thermal transients
