Analog force and torque sensor 9047C

with electrical output signal

Product description

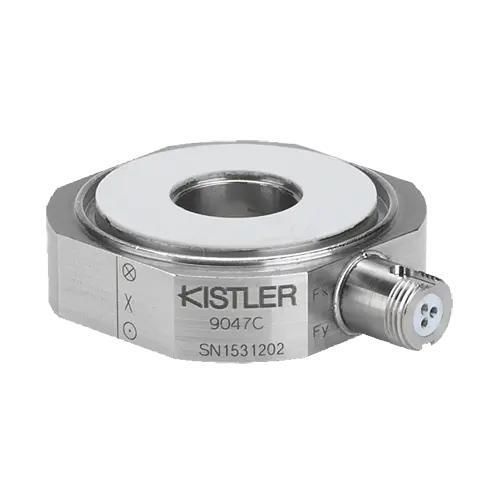

The 9047C is a triaxial piezoelectric ring force sensor designed to measure force components in any direction independently of the load application point. One quartz ring per axis provides high-resolution measurement of Fx, Fy and Fz. Its flattened sides allow precise alignment and mounting. The stiff, vibration-resistant design with a high natural frequency supports dynamic force testing and high-bandwidth measurement. Ceramic contact discs provide electrical insulation and a high friction coefficient for mass-isolated installation. Shear-range magnitude in X and Y depends on Z-preload and resulting axial static friction. Signals are routed via the design-protected 3‑pole V3 neg. connector with a positioning aid to prevent misalignment and twisting.

Main features

• Triaxial piezoelectric ring force sensor — measuring ranges: Fx/Fy ±15 kN; Fz ±30 kN (±3.37 klbf / ±6.74 klbf)
• High shear-force capability due to electrically insulating ceramic contact surfaces
• Nominal sensitivity Fz: −3.7 pC/N
• Output: charge signal (piezoelectric); Connector: V3 neg. (3‑pole)
• Ingress protection: IP68; Operating temperature: −40 … 120 °C

Technical data
Measuring ranges

• Minimum / Maximum: −30 kN / 30 kN
• Fx: −15 … 15 kN
• Fy: −15 … 15 kN

Calibrations

• Calibrated Fx: 0 … 15 kN
• Calibrated Fy: 0 … 15 kN
• Calibrated Fz: 0 … 100 kN

Product type

• Measurement system: Sensor
• Force sensor type: Triaxial force sensor (ring)
• Preloaded sensor: No

Mechanical properties

• Preload force: 70 kN
• Axial stiffness: 6.207 kN/μm
• Bending stiffness: 7.739 kN·m/°
• Shear stiffness: 1.938 kN/μm
• Torsional stiffness: 8.348 kN·m/°
• Lateral stiffness: 1.489 kN/μm
• Overload Fx/Fy: ±18 kN; Overload Fz: ±35 kN
• Permissible moment loading Mx, My, Mz: −150 … 150 N·m

Crosstalk

• Fx→Fy / Fy→Fx: −2 … 2 %
• Fx→Fz / Fy→Fz: −3 … 3 %
• Fz→Fx / Fz→Fy: −0.5 … 0.5 %

Metrological characteristics

• Linearity: ±0.25 %FSO
• Threshold: <0.01 N

Electrical properties

• Output signal type: Charge (piezoelectric)
• Nominal sensitivity Fz: −3.7 pC/N
• Capacitance: 70 pF
• Minimal insulation resistance: 10^13 Ω
• Ground insulation: >10^8 Ω

Certificates and Standards

• Degree of protection (EN 60529): IP68

Operation and installation

• Operating temperature range: −40 … 120 °C
• Typical applications: NVH testing, space payload testing, 3C electronics manufacturing

Cable properties

• Cable included: No

Interfaces

• Connector type: V3 neg. (3‑pole)

Dimensions and materials

• Weight: 91 g

Technical specifications

• Model: 9047C
• Brand: Kistler
• Measuring ranges: Fx/Fy = −15 … 15 kN; Fz = −30 … 30 kN
• Output: Piezoelectric charge
• Capacitance: 70 pF
• Connector: V3 neg. (3‑pole)
• Preload force: 70 kN
• IP: IP68
• Operating temperature: −40 … 120 °C
• Weight: 91 g
