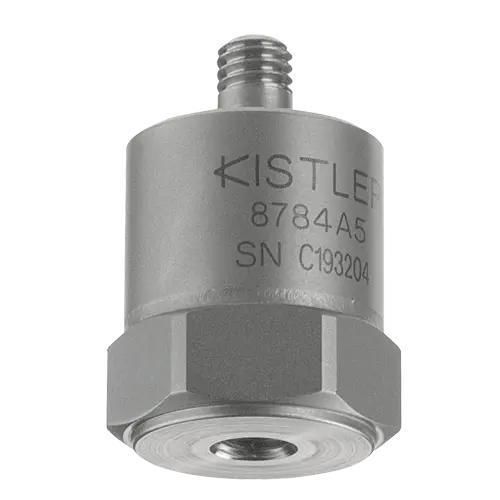

1-axis accelerometer 8784A5single-axispiezoelectricIEPE
Add to favorites
Compare this product
Characteristics
- Number of axes
- 1-axis, single-axis
- Technology
- piezoelectric, IEPE, shear
- Other characteristics
- adhesive, with analog output, voltage output
- Acceleration range
Max.: 49 m/s²
(161 ft/s²)Min.: -49 m/s²
(-161 ft/s²)- Frequency
Max.: 6,000 Hz
Min.: 1 Hz
Description
Product summary
Single-axis ceramic shear accelerometer with a maximum measuring range of 5 g, sensitivity 1000 mV/g and top 10-32 (negative) connector. Voltage output (Piezoelectric, IEPE).
Main features
Technical data
Operation and installation
Product specifications
Single-axis ceramic shear accelerometer with a maximum measuring range of 5 g, sensitivity 1000 mV/g and top 10-32 (negative) connector. Voltage output (Piezoelectric, IEPE).
Main features
- Ceramic shear sensing element, single-axis
- Maximum measuring range: 5 g
- Sensitivity: 1000 mV/g (IEPE / voltage output)
- Top 10-32 negative connector
- Frequency response: 1 Hz to 6000 Hz (±5%)
- Mounting options: threaded hole / stud, adhesive / wax, magnetic base
Technical data
- Number of axes: 1
- Output signal type: Voltage (Piezoelectric, IEPE)
- Electrical isolation: Case isolation
- Minimum frequency (±5%): 1 Hz
- Maximum frequency (±5%): 6000 Hz
Operation and installation
- Operating temperature: -54 °C to 80 °C
- Mounting: threaded hole / stud; adhesive / wax; magnetic base
- Connector: top 10-32 (negative)
Product specifications
- Model: 8784A5
- Product code / ID: 18007073
- Brand: Kistler
