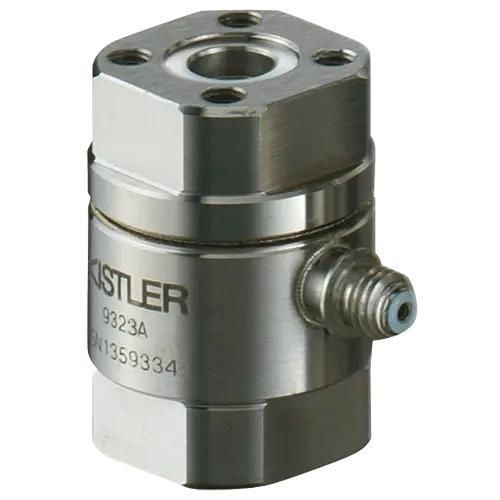

Tension/compression load cell 9323A

pancake typesingle-axispiezoelectric

Overview
This press-force load cell from Kistler is a piezoelectric single-axis sensor designed for measuring dynamic and quasi-static compression (and limited tension) forces in testing and production environments. Factory preload and modular design ensure the sensor is ready for immediate integration with charge amplifiers or conditioning electronics.

Main features

• Piezoelectric press force load cell, factory preloaded and calibrated (model-dependent)
• Calibrated Fz ranges available: 0 … 0.1 kN; 0 … 0.2 kN; 0 … 1 kN; 0 … 2 kN; 0 … 10 kN; 0 … 20 kN (depending on variant)
• Sensitivity range: approx. –3.9 to –9.6 pC/N depending on range
• Compact dimensions: DxH 20 x 26 mm; weight approx. 47–50 g

Technical specifications

• Measuring ranges: Minimum 0 kN; Maximum up to 20 kN (variant-dependent)
• Calibration: factory calibrated Fz ranges as listed above
• Product type: single-axis force sensor (preloaded)
• Mechanical properties: preload force ≈ 8.5 kN; permitted tensile force up to approx. 0 … -1 to -2 kN depending on variant; axial stiffness ≈ 1.2–1.3 kN/μm; maximum bending moment Mxy ≈ 23 N·m; maximum torque Mz ≈ 5 N·m; shear force ≈ 0.62 kN
• Crosstalk: Fx→Fz and Fy→Fz typically within ±0.03–0.05 %; Mx/My→Fz typical range ±0.5 N/N·m
• Metrological characteristics: linearity ≤ ±0.5 %FSO; repeatability (rel. std. dev.) ≈ 0.02–0.03 %FSO
• Electrical properties: output signal type = charge (piezoelectric); capacitance ≈ 29–68 pF; insulation resistance ≥ 5·10^13 Ω
• Influence quantities: sensitivity temperature coefficient ≈ 0.05 %/°C
• Dynamical properties: natural frequency Fz typically 72–74.5 kHz
• Certificates & standards: degree of protection EN 60529: IP67
• Operation & installation: operating temperature range −40 … 120 °C; typical applications: in-line and end-of-line testing, semiconductor assembly, 3C electronics manufacturing
• Cable & interface: cable not included; connector type KIAG 10-32 neg.
• Dimensions & materials: casing material DIN 1.4542; dimensions DxH 20 x 26 mm; weight ≈ 47–50 g
• Notes: models referenced 9323A and 9323AA are variants of the Press Force family — confirm exact model/range when ordering
