6-axis force and torque sensor 9267A1

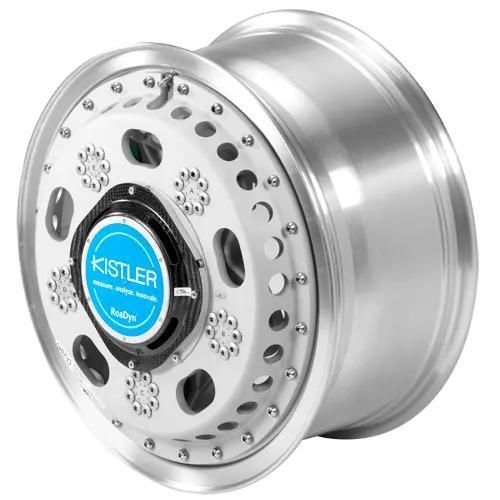

6-axis force and torque sensor - 9267A1 - KISTLER

6-axis force and torque sensor - 9267A1 - KISTLER

6-axis force and torque sensor - 9267A1 - KISTLER - image - 2

Add to favorites

Compare this product

Characteristics

Type

6-axis

Rated force

Max.: 35 kN

Min.: -35 kN

Torque

Max.: 5,000 Nm
(3,687.81 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Description

Overview
The wheel force transducer RoaDyn S635sp measures wheel forces and moments and is designed for spinning wheels on test tracks. It provides multi-axis force and moment data for vehicle dynamics research, tire testing and road-load data acquisition for virtual and experimental simulation.

Main features

Wheel force transducer for large passenger cars and light SUVs
For spinning/rotating-wheel applications on test tracks
Wheel forces measuring ranges: Fx, Fz ±35 kN; Fy ±20 kN
Moments measuring ranges: Mx, My, Mz ±5 kNm

Applications

NVH testing
Vehicle durability testing
Tire testing

Technical specifications

Model name: RoaDyn S635 sp (9267A1)
Product type: Sensor
Load category: Passenger car, SUV
Suitable for: Spinning wheels on test tracks
Wheel forces measuring ranges: Fx, Fz ±35 kN; Fy ±20 kN
Moments measuring ranges: Mx, My, Mz ±5 kNm
Typical uses: Vehicle dynamics research, tire testing, road-load data acquisition for virtual and experimental simulation
Product code: 18020290
