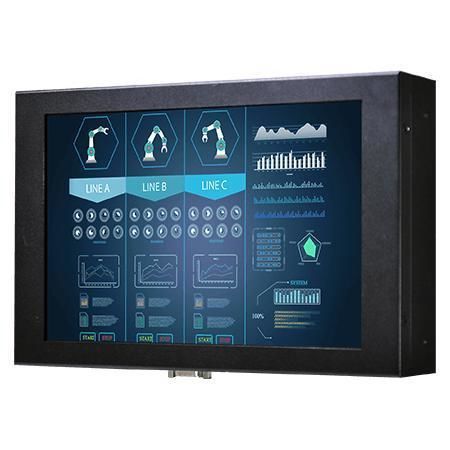

LCD display W10L100-CHH2

capacitive touch screenresistive touch screencolor

Overview

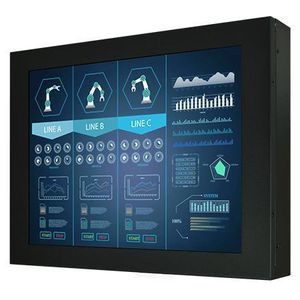

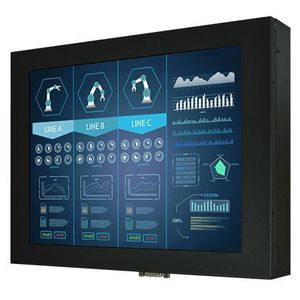

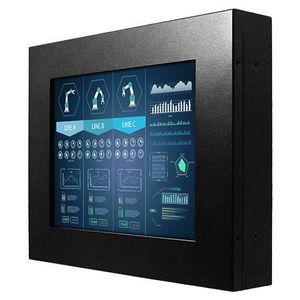

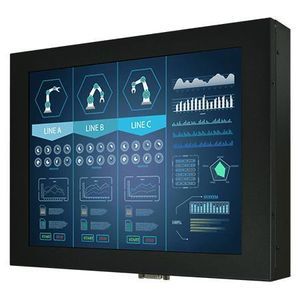

The W10L100-CHH2 is a 10.1-inch chassis industrial display designed for embedded and industrial applications. It features low power consumption, effective heat dissipation, a metal housing with aluminum bezel and VESA mounting for integration into machines and control panels.

Key features

• 10.1-inch, 1280 x 800 resolution
• VGA input; HDMI and DVI optional
• Chassis-type design with VESA mount
• Fanless design for reliable continuous operation
• Optional resistive or capacitive touch; protection glass option

Certifications

• CE
• FCC

Applications and reliability
The display is built for long-term operation in production environments, providing stable performance, effective thermal management and a rugged enclosure suitable for HMI, machine control and embedded systems.

Mounting and installation
Universal mounting options support wall, panel and desk installation; VESA mount facilitates straightforward integration into existing systems and industrial cabinets.

Display ports and customization
Standard and optional I/O include VGA, HDMI, DVI, USB for touch, audio line-in and optional speakers. Customization options cover product size, LCD brightness, glass surface treatment, customer logo and country-specific power connectors.

Technical specifications

• Model: W10L100-CHH2
• Size: 10.1 inches
• Touch / Glass: Resistive touch screen (optional); Protection glass without touch (optional)
• Resolution: 1280 x 800
• Panel brightness: 350 nits
• Contrast ratio: 800:1
• View angles: 85/85/85/85
• Display color: 16.7M colors
• Active area: 216.96 x 135.6 mm
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certification: CE, FCC
• USB port: 1 x USB for touch screen
• Video: 1 x VGA; 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line-in (3.5 mm) optional; 2 x speaker optional
• Dimensions: 270 x 160 x 38 mm
• Weight: 1.2 kg
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling system: Fanless design
• Accessories: VGA cable; HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional)
• Power rating: 12V DC in; 24V DC in (optional)
• Control: 5 keys: -, +, Power, Esc, Enter
