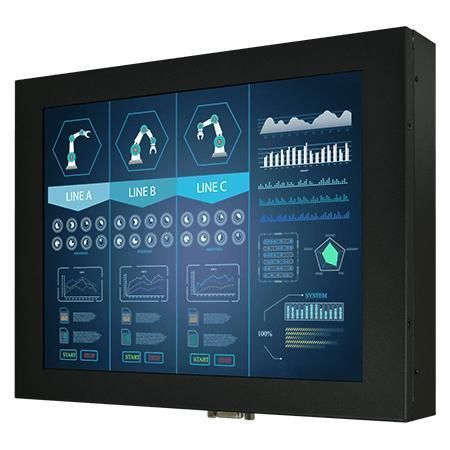

TFT LCD display R10L600-CHP1TR

resistive touch screentransflective800 x 600

Key Features

• 10.4-inch, 800 × 600 resolution
• VGA and HDMI input (HDMI optional)
• Chassis mount design
• VESA mount
• Transflective panel

Certifications

• CE
• FCC

Overview
Low Power Consumption This display is designed for low power consumption and effective heat dissipation to support continuous operation in production and embedded systems.

Easy Mounting Universal mounting options enable wall, desk or chassis installation to suit a range of industrial integration needs.

Chassis Mount Display Available in resistive touch by default, with optional protection glass (no touch) or SAW touch; sizes and brightness variants can be selected for indoor or outdoor use.

High Reliability for Various Industrial Applications Rugged metal housing and fanless design provide durable operation in factory environments. Components and assembly processes are selected to ease integration and long-term service.

Outstanding Image Quality Engineered display modules deliver consistent color and clarity suitable for industrial control, HMI and embedded applications.

Display Ports and Customization Customization options include panel brightness, glass surface treatment, display ports, power plug styles and customer logo according to project or regional requirements.

Technical specifications

• Model: R10L600-CHP1TR
• Brand: Winmate
• Display size: 10.4 inches
• Resolution: 800 × 600
• Panel brightness: 700 nits
• Contrast ratio: 400:1
• Viewing angles: 70, 70, 70, 60
• Display color: 262K Colors
• Active area: 211.2 × 158.4 mm
• Touch / Glass: Resistive Touch Screen; Protection Glass w/o Touch (Optional); SAW Touch (Optional)
• USB: 1 × USB for touch screen
• Video: 1 × VGA; 1 × HDMI (Optional); 1 × DVI (Optional)
• Audio: Audio line-in (3.5 mm) (Optional); 2 × Speaker (Optional)
• Dimensions: 260 × 200 × 45 mm
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power rating: 12V DC in; 24V DC in (optional)
• Buttons: 5 keys: -, +, Power, Esc, Enter
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Certifications: CE, FCC
• Accessories: 1 × VGA cable; 1 × HDMI cable; 100–240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessory: Remote controller (optional, varies by product)
