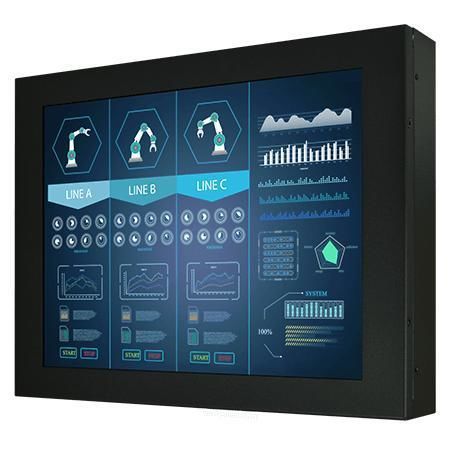

TFT LCD display R10L100-CHT2

capacitive touch screenresistive touch screencolor

Overview
This 10.4" chassis display R10L100-CHT2 by Winmate is designed for embedded, commercial and industrial applications requiring low power consumption, effective heat dissipation and flexible mounting options for wall or desk installations.

Key Features

• 10.4", 1024 x 768 resolution
• VGA and HDMI input (HDMI/DVI optional)
• Chassis mount form factor with metal housing and aluminum bezel
• VESA mount

Certifications

• CE
• FCC

Product Highlights

• Low power consumption — Designed for energy-efficient operation and effective heat dissipation for continuous use in production environments.
• Easy mounting — Universal mounting options for wall and desk installation to suit varied industrial needs.
• Chassis-mount display — Available with resistive or capacitive touch; optional protection glass (no touch) or SAW touch; multiple brightness options for indoor applications.
• High reliability — Metal enclosure, fanless cooling and industrial-grade assembly for reliable operation in factory environments.
• Flexible I/O — VGA standard with optional HDMI and DVI; optional audio and speakers; USB for touch interface.

Technical Specifications

• Model: R10L100-CHT2
• Brand: Winmate
• Display Size: 10.4 inches
• Resolution: 1024 x 768
• Touch / Glass: Resistive Touch Screen; Protection Glass w/o Touch Function (Optional); SAW Touch (Optional)
• Panel Brightness: 350.0 nits
• Contrast Ratio: 1000:1
• View Angles: 88° / 88° / 88° / 88°
• Display Color: 16.2M Colors
• Active Area: 210.4 x 157.8 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• Certifications: CE, FCC
• USB: 1 x USB for Touch Screen
• Video Inputs: 1 x VGA; 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimensions: 259.6 x 196.6 x 45 mm
• Mounting: VESA Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessories Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (Optional, varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Control Buttons: 5 Keys ( -, +, Power, Esc, Enter )
