Brushless motor CW70BL77-200L6240-00
DCdirect currentthree-phase

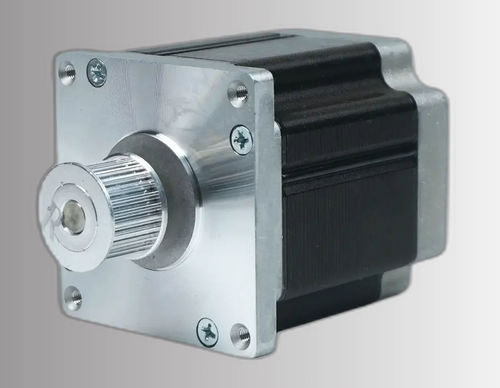

Brushless motor - CW70BL77-200L6240-00 - NEOTON MOTOR - DC / direct current / three-phase
Brushless motor - CW70BL77-200L6240-00 - NEOTON MOTOR - DC / direct current / three-phase
Brushless motor - CW70BL77-200L6240-00 - NEOTON MOTOR - DC / direct current / three-phase - image - 2
Add to favorites
Compare this product
Go to the NEOTON MOTOR website for more information

Characteristics

Type
DC, direct current, three-phase, brushless, BLDC
Voltage
72 V
Number of poles
4-pole
Applications
for industrial applications, for robotics
Other characteristics
high-speed, precision, motion control, with brushless DC motor
Power

0.2 kW
(0.27 hp)

Torque

Min.: 0.08 Nm
(0.059005 ft.lb)

Max.: 0.16 Nm
(0.11801 ft.lb)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 24,000 rpm
(150,796.4474 rad.min-1)

Diameter

70 mm
(2.76 in)

Description

Product Overview
The CW70BL77-200L6240-00 is a 70 mm (NEMA 28) 3-phase brushless DC motor from NEOTON MOTOR. It delivers 200 W rated power and is optimized for high-speed applications (rated speed 24000 RPM) at 72 ±10% VDC. Suited for industrial automation, robotics, precision motion control and other OEM systems requiring compact, high-speed torque sources.

Key Highlights
  • Rated power: 200 W
  • Supply voltage: 72 ±10% VDC
  • Rated torque: 0.08 N·m at 24000 RPM
  • Frame size: 70 mm (NEMA 28)
  • 3-phase brushless construction for smooth, low-maintenance operation

Summary Tiles
Rated Power — 200 W
Rated Voltage — 72 ±10% VDC
Rated Speed — 24000 RPM
Rated Torque — 0.08 N·m
Rated Current — TBD A
Frame Size — 70 mm (NEMA 28)

Electrical Specifications (key parameters)
Parameter — Value
Poles — 4
Phases — 3
Rated Voltage — 72 ±10% VDC
Rated Power — 200 W
Rated Speed — 24000 RPM
Rated Torque — 0.08 N·m
Rated Current — TBD A
Max Speed — 24000 RPM
Max Torque — 0.16 N·m
Voltage Constant — TBD ±5% V/kRPM
Line Resistance — TBD ±5% Ω (20°C)
Line Inductance — TBD ±10% mH
Insulation Resistance — 100 MΩ (500 VDC)
Insulation Class — B (130°C)
Weight — TBD kg
Frame Size — 70 mm (NEMA 28)
Part Number — CW70BL77-200L6240-00

Mechanical & Performance Data
Mechanical drawing and mounting dimensions available for the 70 mm BLDC series. Torque–speed curve and performance charts provided for model CW70BL77-200L6240-00 to support system integration and control tuning.

Technical Characteristics
  • Model / Part Number: CW70BL77-200L6240-00
  • Manufacturer / Brand: NEOTON MOTOR
  • Frame size: 70 mm (NEMA 28)
  • Rated power: 200 W
  • Rated voltage: 72 ±10% VDC
  • Rated speed: 24000 RPM
  • Rated torque: 0.08 N·m
  • Max torque: 0.16 N·m
  • Max speed: 24000 RPM
  • Poles: 4
  • Phases: 3
  • Voltage constant: TBD ±5% V/kRPM
  • Line resistance: TBD ±5% Ω (20°C)
  • Line inductance: TBD ±10% mH
  • Insulation resistance: 100 MΩ (500 VDC)
  • Insulation class: B (130°C)
  • Rated current: TBD A
  • Weight: TBD kg
