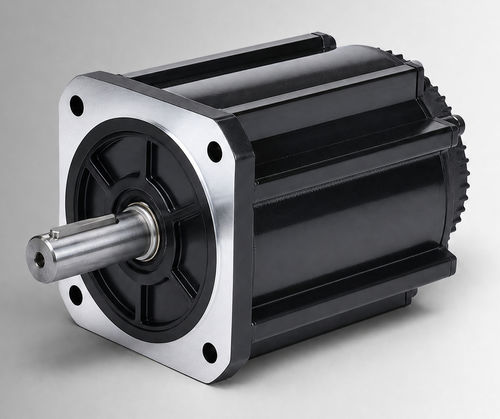

Brushless motor CW180BLBT-19020-L6-H

DCBLDC96 V

Product overview
CW180BLBT-19020-L6-H is a 180 mm framed brushless DC motor rated 4000 W, 96 VDC, 19 N·m at 2000 rpm. It is intended for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions and brushed-DC upgrade projects, and can be considered for compact industrial equipment and auxiliary drives when project voltage, load, duty cycle, installation interface and environmental conditions are confirmed for the application.

Key highlights

• Rated power: 4000 W
• Rated voltage: 96 VDC
• Rated torque: 19 N·m at 2000 rpm
• Rated current: 50±10% Arms

Quick specifications

• Frame size: 180 mm
• Rated speed: 2000 rpm
• Torque constant: 0.38±10% N·m/A
• Rotor inertia: 90±10% kg·m² × 10⁻⁴
• Back EMF: 23±10% V/krpm
• Protection class: IP54 (IP65 optional)

Electrical & Mechanical specifications (table)
Parameter — Value
Rated Power — 4000 W
Rated Voltage — 96 VDC
Rated Torque — 19 N·m
Rated Speed — 2000 rpm
Rated Current — 50±10% Arms
Frame Size — 180 mm
Torque Constant — 0.38±10% N·m/A
Rotor Inertia — 90±10% kg·m² × 10⁻⁴
Back EMF — 23±10% V/krpm
Line Inductance — Not specified; tolerance ±10%
Line Resistance — Not specified; tolerance ±10%
Body Length (L) — 226 mm
Body Length with Brake (LB) — 319 mm
Weight — 22.7 kg (without brake) / 34 kg (with brake)
Feedback Element (Option) — Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance — DC500V, >20 MΩ (Class F)
Dielectric Strength — 800 VAC / 1 s / 5 mA
Operating Environment — Temperature: -20 to 40°C (−40 to 40°C optional); Humidity: 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding the stated temperature or altitude range)
Protection Class — IP54 (IP65 optional)
Part Number — CW180BLBT-19020-L6-H

Mechanical & performance graphics
Mechanical drawings and torque–speed curves are provided for the standard 180 mm and fan-cooled configurations to support performance evaluation.

Technical specifications

• Model / Part Number: CW180BLBT-19020-L6-H
• Frame size: 180 mm
• Rated power: 4000 W
• Rated voltage: 96 VDC
• Rated torque: 19 N·m
• Rated speed: 2000 rpm
• Rated current: 50±10% Arms
• Torque constant: 0.38±10% N·m/A
• Rotor inertia: 90±10% kg·m² × 10⁻⁴
• Back EMF: 23±10% V/krpm
• Line inductance/resistance: not specified (tolerance ±10%)
• Body length (L): 226 mm; with brake (LB): 319 mm
• Weight: 22.7 kg (without brake) / 34 kg (with brake)
• Feedback options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Insulation resistance: DC500V, >20 MΩ (Class F)
• Dielectric strength: 800 VAC / 1 s / 5 mA
• Operating environment: -20 to 40°C (−40 to 40°C optional); humidity 20%–80% RH non-condensing; altitude below 1000 m (derate if exceeding temperature/altitude)
• Protection class: IP54 (IP65 optional)
