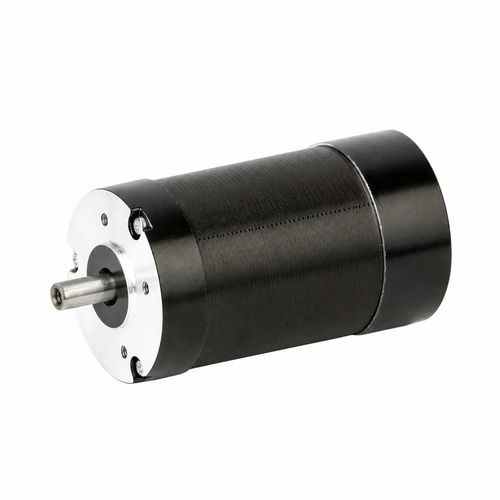

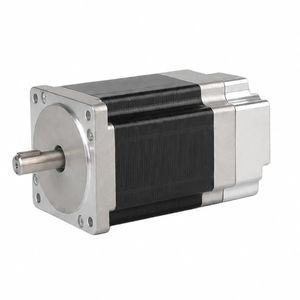

Brushless motor CW57BLTA95-60 L260-00

DC3-phaseBLDC

Product Overview
The CW57BLTA95-60 L260-00 is a 57mm (NEMA 23) dual-shaft 3-phase brushless DC motor designed for industrial automation, robotics and precision motion control. Available in 60 W (left-shaft) and 30 W (right-shaft) variants; rated for 24 VDC ±10% and 6000 RPM.

Key Highlights

• Rated power: 60 W (left shaft), 30 W (right shaft)
• Supply voltage: 24 VDC ±10%
• Rated torque: 100 mN·m (left), 50 mN·m (right) at 6000 RPM
• Frame size: 57 mm (NEMA 23)
• 3-phase BLDC design for smooth, controllable operation

Electrical Specifications (table)
Parameter : Value
Phases : 3
Rated Voltage : 24 VDC ±10%
Rated Power : 60 W (left shaft), 30 W (right shaft)
Rated Speed : 6000 RPM
Rated Torque : 100 mN·m (left shaft), 50 mN·m (right shaft)
Insulation Resistance : 100 MΩ at 500 VDC
Insulation Class : B (130°C)
Control Method : Speed control
Frame Size : 57 mm (NEMA 23)
Part Number : CW57BLTA95-60 L260-00

Documentation & Schematics
Product datasheet available (refer to part number). Mechanical drawing and torque-speed curve provided as reference images; drawing shows dimensional details and torque-speed curve illustrates performance across speeds and loads.

Technical characteristics / specifications

• Model / Part Number: CW57BLTA95-60 L260-00
• Series: 57BLTA Series
• Frame size: 57 mm (NEMA 23)
• Motor type: 3-phase brushless DC (BLDC)
• Rated power: 60 W (left shaft), 30 W (right shaft)
• Rated voltage: 24 VDC ±10%
• Rated speed: 6000 RPM
• Rated torque: 100 mN·m (left), 50 mN·m (right)
• Insulation resistance: 100 MΩ at 500 VDC
• Insulation class: B (130°C)
• Control method: Speed control
• Included references: datasheet identifier, mechanical drawing, torque-speed curve
