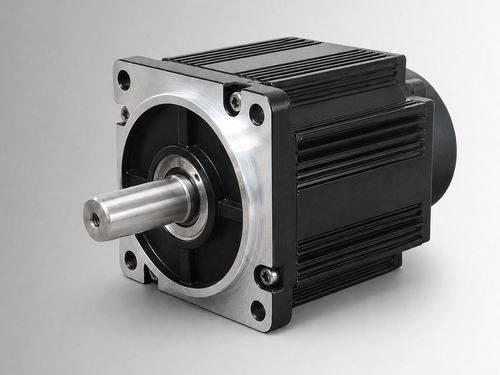

BLDC motor CW110BLBT-07530-L3-H

48 Vwith brakeIP65

Product Description
CW110BLBT-07530-L3-H is a 110 mm frame brushless DC (BLDC) motor rated 2350 W, 48 VDC, with 7.5 N·m rated torque at 3000 rpm. It is designed for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions and brushed-DC upgrade projects. Suitable for compact industrial equipment and auxiliary drives when voltage, load, duty cycle and installation interface are verified for the application.

Key Highlights

• Rated power: 2350 W
• Rated voltage: 48 VDC
• Rated torque: 7.5 N·m @ 3000 rpm
• Rated current: 59 ±10% Arms

Quick Specs

• Frame size: 110 mm
• Rated speed: 3000 rpm
• Torque constant: 0.128 ±10% N·m/A
• Rotor inertia: 10.9 ±10% ×10⁻⁴ kg·m²
• Back EMF: 7.7 ±10% V/krpm
• Body length (L): 156 mm; with brake (LB): 193 mm
• Weight: 6.36 / 8.47 kg

Electrical & Mechanical Specifications
Rated Power: 2350 W
Rated Voltage: 48 VDC
Rated Torque: 7.5 N·m
Rated Speed: 3000 rpm
Rated Current: 59 ±10% Arms
Frame Size: 110 mm
Torque Constant: 0.128 ±10% N·m/A
Rotor Inertia: 10.9 ±10% ×10⁻⁴ kg·m²
Back EMF: 7.7 ±10% V/krpm
Line Inductance: not specified; tolerance ±10%
Line Resistance: not specified; tolerance ±10%
Body Length (L): 156 mm
Body Length with Brake (LB): 193 mm
Weight: 6.36 / 8.47 kg
Feedback (option): Magnetic Hall or Hall + 2500-line incremental encoder
Insulation Resistance: DC 500 V, >20 MΩ (Class F)
Dielectric Strength: 800 VAC / 1 s / 5 mA
Operating Temp.: -20 to 40°C (optionally -40 to 40°C)
Humidity: 20%–80% RH (non-condensing)
Altitude: recommended below 1000 m (derate above stated ranges)
Protection: IP54 (IP65 optional)
Part Number: CW110BLBT-07530-L3-H

Applications & Integration
Intended for evaluation and integration by OEMs and system integrators for electro-hydraulic pump drives, mobile machinery actuators, auxiliary drives and retrofits replacing brushed DC motors. Verify electrical interface, thermal management and mechanical mounting for your system before series use.

Options & Compliance
Available options include IP65 sealing, Hall + incremental encoder (2500 lines) and extended low-temperature operation. Meets dielectric and insulation requirements specified above; confirm project-specific environmental and EMC requirements prior to deployment.
