Brushless motor CW110BLBT-06020-L5-H

DCBLDC72 V

Product overview

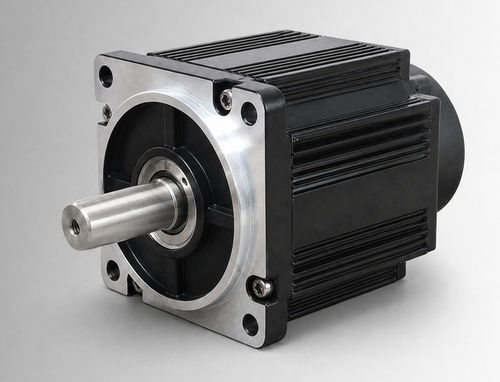

CW110BLBT-06020-L5-H is a 110 mm framed high-power brushless DC motor rated 1250 W, 72 VDC, 6 N·m at 2000 rpm. The unit is intended for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions, brushed-DC upgrade projects and for compact industrial equipment or auxiliary drives when voltage, load, duty cycle, installation interface and environmental conditions are confirmed for the application.

Key highlights

• Rated power: 1250 W
• Rated voltage: 72 VDC
• Rated torque: 6 N·m at 2000 rpm
• Rated current: 22±10% Arms
• Frame size: 110 mm
• Protection: IP54 (IP65 optional)

Electrical & Mechanical Specifications
Rated Power — 1250 W
Rated Voltage — 72 VDC
Rated Torque — 6 N·m
Rated Speed — 2000 rpm
Rated Current — 22±10% Arms
Frame Size — 110 mm
Torque Constant — 0.27±10% N·m/A
Rotor Inertia — 10.9±10% kg·m² × 10⁻⁴
Back EMF — 16.5±10% V/krpm
Line Inductance — Not specified; tolerance ±10%
Line Resistance — Not specified; tolerance ±10%
Body Length (L) — 156 mm
Body Length with Brake (LB) — 193 mm
Weight — 6.36 / 8.47 kg
Feedback Element (option) — Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance — DC 500 V, >20 MΩ (Class F)
Dielectric Strength — 800 VAC / 1 s / 5 mA
Operating Environment — Temperature: -20 to 40 °C (optional -40 to 40 °C); Humidity: 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding stated temperature or altitude)
Protection Class — IP54 (IP65 optional)
Part Number — CW110BLBT-06020-L5-H

Mechanical & Performance Diagrams
Mechanical drawing: 110 mm standard structure (image).
Torque-speed characteristics: product torque-speed chart (image).

Technical specifications

• Rated Power: 1250 W
• Rated Voltage: 72 VDC
• Rated Torque: 6 N·m
• Rated Speed: 2000 rpm
• Rated Current: 22±10% Arms
• Frame Size: 110 mm
• Torque Constant: 0.27±10% N·m/A
• Rotor Inertia: 10.9±10% kg·m² × 10⁻⁴
• Back EMF: 16.5±10% V/krpm
• Line Inductance: Not specified; tolerance ±10%
• Line Resistance: Not specified; tolerance ±10%
• Body Length (L): 156 mm
• Body Length with Brake (LB): 193 mm
• Weight: 6.36 / 8.47 kg
• Feedback Element (option): Magnetic Hall / Hall + 2500-line incremental encoder (optional)
• Insulation Resistance: DC 500 V, >20 MΩ (Class F)
• Dielectric Strength: 800 VAC / 1 s / 5 mA
• Operating Environment: Temperature -20 to 40 °C (optional -40 to 40 °C); Humidity 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding temperature or altitude)
• Protection Class: IP54 (IP65 optional)
• Part Number: CW110BLBT-06020-L5-H
