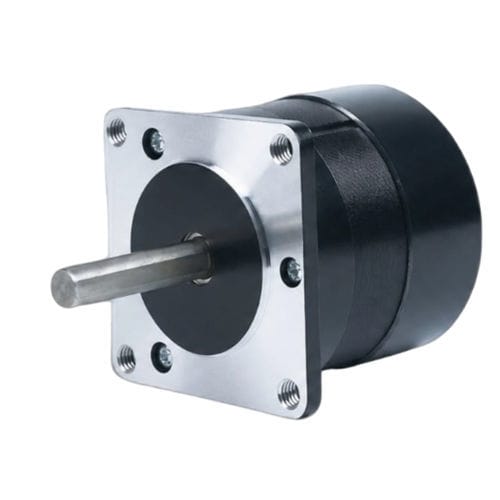

Brushless motor CW57BLMA54-100L2100-01

DCthree-phase24 V

Product Overview
The CW57BLMA54-100L2100-01 is a 57 mm (NEMA 23) 3-phase brushless DC motor delivering 100 W at 24 ±10% VDC and designed for industrial automation, robotics and precision motion-control applications requiring compact, high-speed operation.

Key Highlights

• Rated power: 100 W
• Supply voltage: 24 ±10% VDC
• Rated torque: 0.096 N·m at 10000 RPM
• Frame size: 57 mm (NEMA 23)
• 3-phase brushless design for smooth, low-maintenance operation

Quick Specifications
Rated Power: 100 W
Rated Voltage: 24 ±10% VDC
Rated Speed: 10000 RPM
Rated Torque: 0.096 N·m
Rated Current: 10 A
Frame Size: 57 mm (NEMA 23)
Part Number: CW57BLMA54-100L2100-01

Electrical Specifications
Poles: 4
Phases: 3
Max Speed: 10000 RPM
Max Torque: 0.192 N·m
Voltage Constant: 3.08 ±5% V/kRPM
Line Resistance: 0.188 ±5% Ω (20°C)
Line Inductance: 0.23 ±10% mH
Insulation Resistance: 100 MΩ @ 500 VDC
Insulation Class: B (130°C)
Weight: 0.5 kg

Drawings & Performance Curves
Mechanical drawing and torque–speed curve are available for the CW57BLMA54-100L2100-01 to support mechanical integration and system design validation.

Technical Features

• Frame: 57 mm (NEMA 23)
• Design: 3-phase brushless DC
• Rated Power: 100 W
• Rated Voltage: 24 ±10% VDC
• Rated Speed: 10000 RPM
• Rated Torque: 0.096 N·m
• Rated Current: 10 A
• Max Torque: 0.192 N·m
• Voltage Constant: 3.08 ±5% V/kRPM
• Line Resistance: 0.188 ±5% Ω (20°C)
• Line Inductance: 0.23 ±10% mH
• Insulation Resistance: 100 MΩ @ 500 VDC
• Insulation Class: B 130°C
• Poles: 4
• Phases: 3
• Weight: 0.5 kg
• Part Number: CW57BLMA54-100L2100-01
