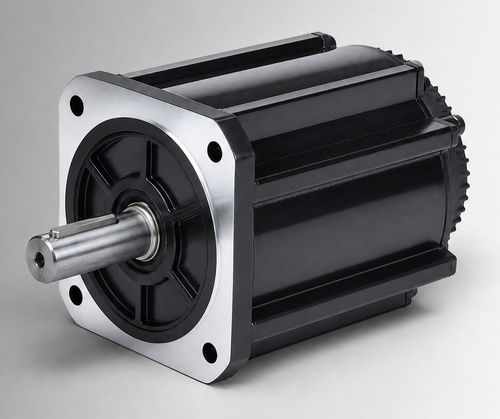

Brushless motor CW180BLBT-15015-L3-H

DCBLDC48 V

Product overview
The CW180BLBT-15015-L3-H is a 180 mm framed brushless DC (BLDC) motor rated 2350 W at 48 VDC, delivering 15 N·m at 1500 rpm. Designed for OEM evaluation and system integration in electro-hydraulic pump drives, mobile work functions and upgrades from brushed DC motors; also suitable for compact industrial equipment and auxiliary drives when installation and environmental requirements are confirmed for the project.

Key highlights

• Rated power: 2350 W
• Rated voltage: 48 VDC
• Rated torque: 15 N·m at 1500 rpm
• Rated current: 59±10% Arms

Electrical & Mechanical specifications

• Rated Power: 2350 W
• Rated Voltage: 48 VDC
• Rated Torque: 15 N·m
• Rated Speed: 1500 rpm
• Rated Current: 59±10% Arms
• Frame Size: 180 mm
• Torque Constant: 0.25±10% N·m/A
• Rotor Inertia: 60±10% kg·m² × 10⁻⁴
• Back EMF: 15.3±10% V/krpm
• Line Inductance: Not specified; tolerance ±10%
• Line Resistance: Not specified; tolerance ±10%
• Body Length (L): 170 mm
• Body Length with Brake (LB): 264 mm
• Weight: 14.5/32 kg
• Part Number: CW180BLBT-15015-L3-H

Options & environmental protection

• Feedback: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Insulation Resistance: DC 500 V, >20 MΩ (Class F)
• Dielectric Strength: 800 VAC / 1 s / 5 mA
• Operating temperature: -20 to 40 °C (optional -40 to 40 °C)
• Humidity: 20% to 80% RH (non-condensing)
• Altitude: <1000 m (derate above specified ranges)
• Protection class: IP54 (IP65 optional)

Applications

• Electro-hydraulic pump drives
• Mobile equipment work functions
• Upgrades from brushed DC motors
• Compact industrial auxiliary drives

Ordering
Part number: CW180BLBT-15015-L3-H. Contact supplier for lead time, optional encoder or IP65 variant and project-specific integration requirements.
