BLDC motor CW110BLBT-04030-L6-H
96 VIP65IP54

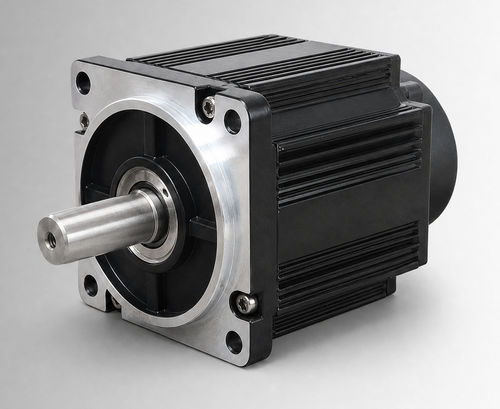

BLDC motor - CW110BLBT-04030-L6-H - NEOTON MOTOR - 96 V / IP65 / IP54
BLDC motor - CW110BLBT-04030-L6-H - NEOTON MOTOR - 96 V / IP65 / IP54
BLDC motor - CW110BLBT-04030-L6-H - NEOTON MOTOR - 96 V / IP65 / IP54 - image - 2
Add to favorites
Compare this product
Go to the NEOTON MOTOR website for more information

Characteristics

Type
BLDC
Voltage
96 V
Protection class
IP54, IP65
Other characteristics
with built-in encoder
Power

1.25 kW
(1.7 hp)

Intensity

Min.: 13.5 A

Max.: 16.5 A

Torque

4 Nm
(2.950249 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Diameter

110 mm
(4.33 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

Product Overview
CW110BLBT-04030-L6-H is a 110 mm framed brushless DC (BLDC) motor rated 1250 W, 96 VDC, 4 N·m at 3000 rpm. It is intended for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions and brushed-DC upgrade projects. The motor can also be assessed for compact industrial equipment and auxiliary drives when project voltage, load profile, duty cycle, installation interface and environmental conditions are confirmed.

Key Highlights
  • Rated power: 1250 W
  • Rated voltage: 96 VDC
  • Rated torque: 4 N·m at 3000 rpm
  • Rated current: 15±10% Arms

Quick Specs
Rated Power — 1250 W
Rated Voltage — 96 VDC
Rated Torque — 4 N·m
Rated Speed — 3000 rpm
Rated Current — 15±10% Arms
Frame Size — 110 mm

Product Datasheet
Datasheet identifier: CW110BLBT-04030-L6-H (datasheet available for download on the product page).

Mechanical Drawing
Mechanical drawing provided for the 110 mm standard structure (see product page).

Torque-Speed Characteristics
Torque-speed chart provided for the product (see product page).

Technical specifications
  • Rated Power: 1250 W
  • Rated Voltage: 96 VDC
  • Rated Torque: 4 N·m
  • Rated Speed: 3000 rpm
  • Rated Current: 15±10% Arms
  • Frame Size: 110 mm
  • Torque Constant: 0.24±10% N·m/A
  • Rotor Inertia: 7.7±10% kg·m² × 10⁻⁴
  • Back EMF: 16±10% V/krpm
  • Line Inductance: Not specified; tolerance ±10%
  • Line Resistance: Not specified; tolerance ±10%
  • Body Length (L): 126 mm
  • Body Length with Brake (LB): 171 mm
  • Weight: 4.14/6.25 kg
  • Feedback Element (option): Magnetic Hall / Hall + 2500-line incremental encoder (optional)
  • Insulation Resistance: DC500V, >20 MΩ (Class F)
  • Dielectric Strength: 800 VAC / 1 s / 5 mA
  • Operating Environment: Temperature -20 to 40°C (optional -40 to 40°C); Humidity 20% to 80% RH (non-condensing); Altitude below 1000 m (derate outside range)
  • Protection Class: IP54 (IP65 optional)
  • Part Number: CW110BLBT-04030-L6-H
