BLDC motor CW180BLBT-48015-L3-H

48 VIP65IP54

Product Overview

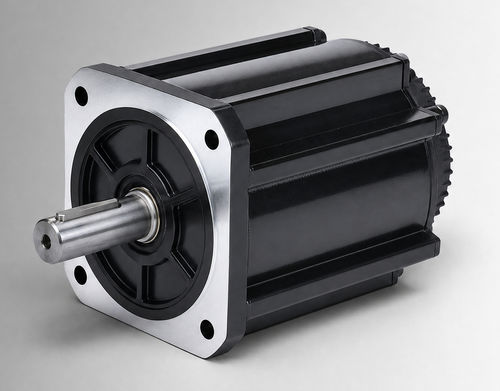

CW180BLBT-48015-L3-H is a 180 mm framed brushless DC (BLDC) motor rated 7500 W, 48 VDC, 48 N·m at 1500 rpm. It is intended for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions and upgrades from brushed DC motors. It can also be evaluated for compact industrial equipment and auxiliary drives when voltage, load, duty cycle, installation interface and environmental conditions are confirmed for the project.

Key Highlights

• Rated power: 7500 W
• Rated voltage: 48 VDC
• Rated torque: 48 N·m at 1500 rpm
• Rated current: 196±10% Arms

Electrical & Mechanical Specifications

• Rated Power: 7500 W
• Rated Voltage: 48 VDC
• Rated Torque: 48 N·m
• Rated Speed: 1500 rpm
• Rated Current: 196±10% Arms
• Frame Size: 180 mm
• Torque Constant: 0.24±10% N·m/A
• Rotor Inertia: 150±10% kg·m² × 10⁻⁴
• Back EMF: 14.5±10% V/krpm
• Line Inductance: 0.131±10% mH
• Line Resistance: 0.012±10% Ω
• Body Length (L): 264 mm
• Body Length with Brake (LB): 319 mm
• Weight: 32/34 kg
• Feedback Element (Option): Magnetic Hall / Hall + 2500-line incremental encoder (optional)
• Insulation Resistance: DC500V, >20 MΩ (Class F)
• Dielectric Strength: 800VAC/1s/5mA
• Operating Environment: Temperature: -20 to 40°C (-40 to 40°C optional); Humidity: 20% to 80% RH (non-condensing); Altitude: <1000 m (derate when exceeding temperature or altitude)
• Protection Class: IP54 (IP65 optional)
• Part Number: CW180BLBT-48015-L3-H

Mechanical Drawings and Characteristics

• Mechanical drawing — 180 mm standard structure
• Mechanical drawing — 180 mm fan-cooled structure
• Torque-speed characteristics

Technical specifications

• Model / Part Number: CW180BLBT-48015-L3-H
• Rated Power: 7500 W
• Rated Voltage: 48 VDC
• Rated Torque: 48 N·m
• Rated Speed: 1500 rpm
• Rated Current: 196±10% Arms
• Frame Size: 180 mm
• Torque Constant: 0.24±10% N·m/A
• Rotor Inertia: 150±10% kg·m² × 10⁻⁴
• Back EMF: 14.5±10% V/krpm
• Line Inductance: 0.131±10% mH
• Line Resistance: 0.012±10% Ω
• Body Length (L): 264 mm
• Body Length with Brake (LB): 319 mm
• Weight: 32/34 kg
• Feedback options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Insulation & Dielectric: DC500V >20 MΩ (Class F); 800VAC/1s/5mA
• Operating range: -20 to 40°C (optional -40 to 40°C); 20%–80% RH; altitude below 1000 m (derate above)
• Protection class: IP54 (IP65 optional)
