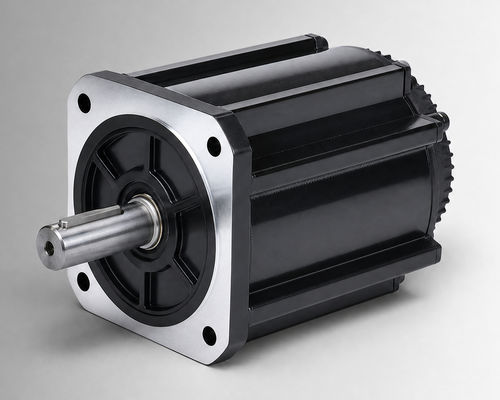

Brushless motor CW180BLBT-28020-L5-H

DCBLDC72 V

Overview
CW180BLBT-28020-L5-H is a 180 mm framed high-power brushless DC motor rated 5800 W, 72 VDC, 28 N·m and 2000 rpm. It is designed for OEM and system integration in electro-hydraulic pump drives, mobile work functions and for upgrading brushed-DC installations. Use for compact industrial equipment and auxiliary drives after verification of voltage, load, duty cycle, installation interface and environmental conditions.

Key Highlights

• Rated power: 5800 W
• Rated voltage: 72 VDC
• Rated torque: 28 N·m at 2000 rpm
• Rated current: 100±10% Arms

Electrical & Mechanical Specifications (summary)
Rated Power: 5800 W
Rated Voltage: 72VDC
Rated Torque: 28 N·m
Rated Speed: 2000 rpm
Rated Current: 100±10% Arms
Frame Size: 180 mm
Torque Constant: 0.28±10% N·m/A
Rotor Inertia: 122±10% kg·m² × 10⁻⁴
Back EMF: 17.3±10% V/krpm
Line Inductance: 0.122±10% mH
Line Resistance: 0.012±10% Ω
Body Length (L): 226 mm
Body Length with Brake (LB): 319(264) mm
Weight: 22.7/33 kg
Feedback Element (Option): Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance: DC500V, >20 MΩ (Class F)
Dielectric Strength: 800VAC/1s/5mA
Operating Environment: Temperature -20 to 40°C (−40 to 40°C optional); Humidity 20% to 80% RH (non-condensing); altitude below 1000 m
Protection Class: IP54 (IP65 optional)
Part Number: CW180BLBT-28020-L5-H

Mechanical drawings & performance data
Mechanical drawings available for standard 180 mm and 180 mm fan-cooled structures. Torque-speed curves and performance plots provided for system assessment.

Applications & options

• Intended for electro-hydraulic pump drives, mobile machinery auxiliaries and compact industrial equipment
• Optional features: encoder, IP65 protection, extended temperature range
• Contact supplier for customization, mounting interfaces and integration support
