DC motor CW42BLB38-26L240-02

3-phaseBLDC24 V

Product Overview

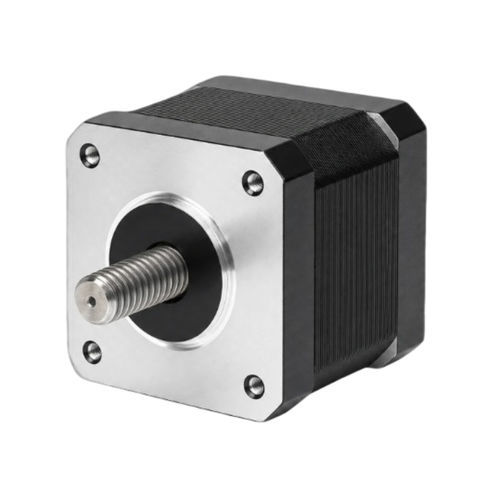

The CW42BLB38-26L240-02 is a 3-phase brushless DC motor in a 42 mm (NEMA 17) frame. It delivers 26 W rated power at a 24 ±10% VDC supply, with a nominal speed of 4000 RPM and a rated torque of 0.063 Nm. The motor is intended for industrial automation, robotics and precision motion-control applications.

Key Highlights

• Rated power: 26 W
• Supply voltage: 24 ±10% VDC
• Rated torque: 0.063 Nm at 4000 RPM
• Frame size: 42 mm (NEMA 17)
• 3-phase brushless design, 8 poles
• Max speed: 4800 RPM; Max torque: 0.2 Nm
• Rated current: 1.5 A; Weight: 0.3 kg

Electrical Specifications

• Part number: CW42BLB38-26L240-02
• Rated Power: 26 W
• Rated Voltage: 24 ±10% VDC
• Rated Speed: 4000 RPM
• Rated Torque: 0.063 Nm
• Rated Current: 1.5 A
• Max Speed: 4800 RPM
• Max Torque: 0.2 Nm
• Voltage Constant: 3.4 ±5% V/kRPM
• Line Resistance: 1.5 ±5% Ω (20°C)
• Line Inductance: 0.9 ±10% mH
• Insulation Resistance: 100 MΩ @ 500 VDC
• Insulation Class: B (130°C)
• Poles: 8; Phases: 3
• Weight: 0.3 kg

Mechanical and Performance
Mechanical drawing and torque‑speed performance curve are available for model CW42BLB38-26L240-02. Typical mounting is NEMA 17 face with standard shaft options. Refer to the datasheet for connector, shaft dimensions and thermal/operating limits.

Applications

• Industrial automation and assembly equipment
• Collaborative and industrial robotics
• Precision positioning and motion control systems
• Small drives for packaging and conveyor systems

Ordering Information
Reference part number CW42BLB38-26L240-02 when ordering and confirm supply voltage, connector and shaft options with the supplier.
