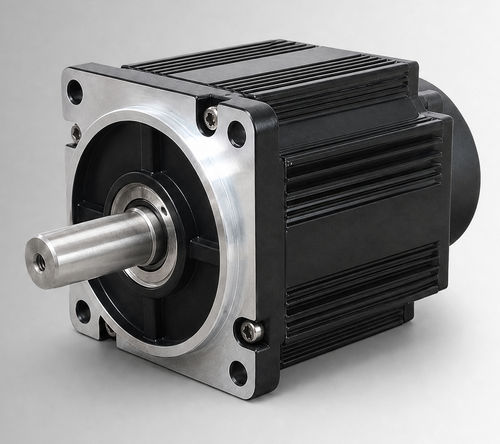

Brushless motor CW110BLBT-07530-L5-H

DCBLDC72 V

Product Overview
CW110BLBT-07530-L5-H is a 110 mm framed brushless DC motor rated 2350 W, 72VDC, 7.5 N·m at 3000 rpm. It is intended for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions and brushed-DC upgrade projects, and can be considered for compact industrial equipment and auxiliary drives when voltage, load, duty cycle, installation interface and environmental conditions are confirmed for the application.

Key Highlights

• Rated power: 2350 W
• Rated voltage: 72VDC
• Rated torque: 7.5 N·m at 3000 rpm
• Rated current: 39±10% Arms

Notes
Mechanical drawing (110 mm standard frame) and torque–speed characteristic images are provided for dimensional reference and performance evaluation.

Technical specifications

• Rated Power: 2350 W
• Rated Voltage: 72VDC
• Rated Torque: 7.5 N·m
• Rated Speed: 3000 rpm
• Rated Current: 39±10% Arms
• Frame Size: 110 mm
• Torque Constant: 0.19±10% N·m/A
• Rotor Inertia: 10.9±10% kg·m² × 10⁻⁴
• Back EMF: 11.6±10% V/krpm
• Line Inductance: Not specified; tolerance ±10%
• Line Resistance: Not specified; tolerance ±10%
• Body Length (L): 156 mm
• Body Length with Brake (LB): 193 mm
• Weight: 6.36 / 8.47 kg
• Feedback element (option): Magnetic Hall / Hall + 2500-line incremental encoder (optional)
• Insulation Resistance: DC 500 V, >20 MΩ (Class F)
• Dielectric Strength: 800 VAC / 1 s / 5 mA
• Operating environment: Temperature -20 to 40°C (‑40 to 40°C optional); Humidity 20% to 80% RH (non-condensing); Altitude < 1000 m (derate above stated temperature or altitude)
• Protection class: IP54 (IP65 optional)
• Part Number: CW110BLBT-07530-L5-H
