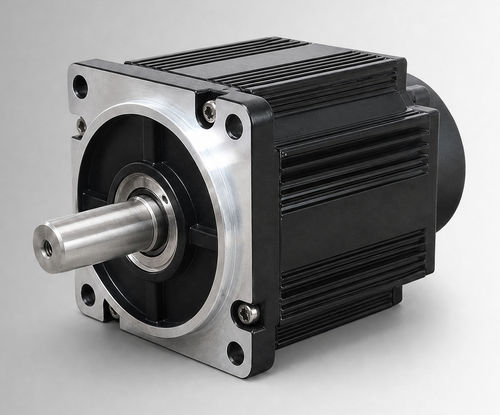

Brushless motor CW110BLBT-07530-L6-H

DCdirect currentBLDC

Product Overview
CW110BLBT-07530-L6-H is a 110 mm frame brushless DC (BLDC) motor rated at 2350 W, 96 VDC, 7.5 N·m at 3000 rpm. It is designed for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions and brushed-DC upgrade projects. The motor can also serve in compact industrial equipment and auxiliary drives once voltage, load, duty cycle, installation interface and environmental conditions are confirmed for the specific application.

Key Highlights

• Rated power: 2350 W
• Rated voltage: 96 VDC
• Rated torque: 7.5 N·m at 3000 rpm
• Rated current: 28±10% Arms

Quick Specs (card summary)
Rated Power — 2350 W
Rated Voltage — 96 VDC
Rated Torque — 7.5 N·m
Rated Speed — 3000 rpm
Rated Current — 28±10% Arms
Frame Size — 110 mm

Electrical & Mechanical Specifications (table)
Rated Power — 2350 W
Rated Voltage — 96 VDC
Rated Torque — 7.5 N·m
Rated Speed — 3000 rpm
Rated Current — 28±10% Arms
Frame Size — 110 mm
Torque Constant — 0.27±10% N·m/A
Rotor Inertia — 10.9±10% ×10⁻⁴ kg·m²
Back EMF — 16±10% V/krpm
Line Inductance — Not specified; tolerance ±10%
Line Resistance — Not specified; tolerance ±10%
Body Length (L) — 156 mm
Body Length with Brake (LB) — 193 mm
Weight — 6.36 kg (without brake) / 8.47 kg (with brake)
Feedback Element (Option) — Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance — DC500V, >20 MΩ (Class F)
Dielectric Strength — 800 VAC / 1 s / 5 mA
Operating Environment — Temperature: -20 to 40°C (optionally -40 to 40°C); Humidity: 20%–80% RH (non-condensing); altitude < 1000 m (derate beyond stated range)
Protection Class — IP54 (IP65 optional)
Part Number — CW110BLBT-07530-L6-H

Mechanical Drawing
Mechanical drawing: 110 mm standard structure (illustration available on product page).

Torque-Speed Characteristics
Torque-speed characteristic curves are provided on the product page for reference to assist selection and system integration.

Technical specifications

• Model / Part Number: CW110BLBT-07530-L6-H
• Frame size: 110 mm
• Rated power: 2350 W
• Rated voltage: 96 VDC
• Rated torque: 7.5 N·m
• Rated speed: 3000 rpm
• Rated current: 28±10% Arms
• Torque constant: 0.27±10% N·m/A
• Rotor inertia: 10.9±10% ×10⁻⁴ kg·m²
• Back EMF: 16±10% V/krpm
• Body length (L): 156 mm; With brake (LB): 193 mm
• Weight: 6.36 kg (without brake) / 8.47 kg (with brake)
• Feedback options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Insulation resistance: DC500V, >20 MΩ (Class F)
• Dielectric strength: 800 VAC / 1 s / 5 mA
• Operating environment: -20 to 40°C (optionally -40 to 40°C); 20%–80% RH non-condensing; altitude <1000 m
• Protection class: IP54 (IP65 optional)
