Brushless motor CW130BLBT-05030-L5-H

DCBLDC72 V

Product Overview

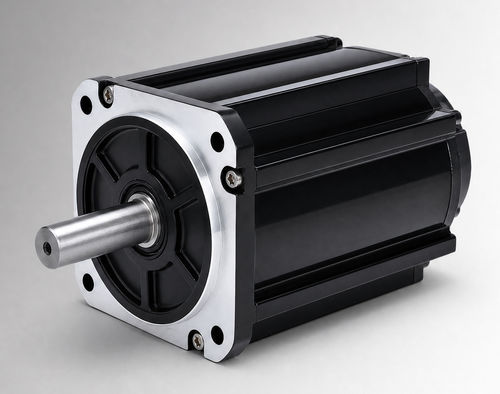

CW130BLBT-05030-L5-H is a 130mm framed brushless DC motor rated 1550 W, 72VDC, 5 N·m at 3000 rpm. Designed for OEM and system integration evaluation in electro-hydraulic pump drives, mobile work functions and brushed-DC upgrade projects. Also suitable for compact industrial equipment and auxiliary drives when project voltage, load, duty cycle, installation interface and environmental conditions are confirmed.

Key Highlights

• Rated power: 1550 W
• Rated voltage: 72VDC
• Rated torque: 5 N·m at 3000 rpm
• Rated current: 26±10% Arms

Quick Specifications

• Rated Power: 1550 W
• Rated Voltage: 72VDC
• Rated Torque: 5 N·m
• Rated Speed: 3000 rpm
• Rated Current: 26±10% Arms
• Frame Size: 130mm

Electrical & Mechanical Specifications
Rated Power — 1550 W
Rated Voltage — 72VDC
Rated Torque — 5 N·m
Rated Speed — 3000 rpm
Rated Current — 26±10% Arms
Frame Size — 130mm
Torque Constant — 0.20±10% N·m/A
Rotor Inertia — 12±10% kg·m² × 10⁻⁴
Back EMF — 11.8±10% V/krpm
Line Inductance — Not specified; tolerance ±10%
Line Resistance — Not specified; tolerance ±10%
Body Length (L) — 119 mm
Body Length with Brake (LB) — 166 mm
Weight — 6/7.8 kg
Feedback Element (Option) — Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance — DC500V, >20 MΩ (Class F)
Dielectric Strength — 800VAC/1s/5mA
Operating Environment — Temperature: -20 to 40°C (-40 to 40°C optional); Humidity: 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding the stated temperature or altitude range)
Protection Class — IP54 (IP65 optional)
Part Number — CW130BLBT-05030-L5-H

Mechanical Drawings & Charts

• Mechanical Drawing — 130mm Standard Structure (image available)
• Mechanical Drawing — 130mm Fan-Cooled Structure (image available)
• Torque-Speed Characteristics (image available)

Technical Specifications

• Rated Power: 1550 W
• Rated Voltage: 72VDC
• Rated Torque: 5 N·m
• Rated Speed: 3000 rpm
• Rated Current: 26±10% Arms
• Frame Size: 130mm
• Body Length (L): 119 mm
• Body Length with Brake (LB): 166 mm
• Weight: 6/7.8 kg
• Torque Constant: 0.20±10% N·m/A
• Back EMF: 11.8±10% V/krpm
• Rotor Inertia: 12±10% kg·m² × 10⁻⁴
• Protection Class: IP54 (IP65 optional)
• Insulation Resistance: DC500V, >20 MΩ (Class F)
• Dielectric Strength: 800VAC/1s/5mA
• Feedback Options: Magnetic Hall / Hall + 2500-line incremental encoder (optional)
• Part Number: CW130BLBT-05030-L5-H
