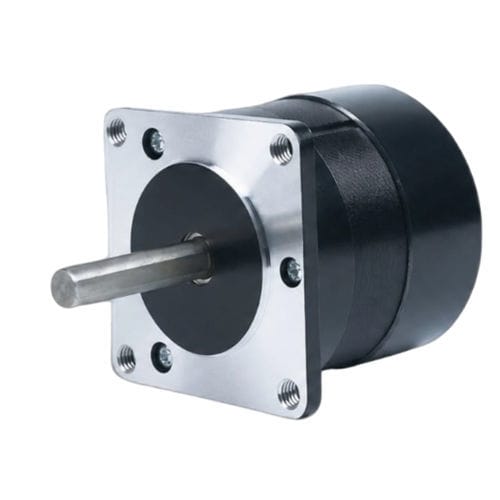

Three-phase motor CW57BLMA54-100L2100-03

BLDCbrushless3-phase

Product overview
The CW57BLMA54-100L2100-03 is a 57 mm (NEMA 23) 3-phase brushless DC motor delivering 100 W at 24 ±10% VDC with a rated speed of 10000 RPM. Designed for industrial automation, robotics and precision motion control applications where compact size and high-speed operation are required.

Key highlights

• Rated power: 100 W
• Rated voltage: 24 ±10% VDC
• Rated torque: 0.096 N·m at 10000 RPM
• Frame size: 57 mm (NEMA 23)
• 3-phase brushless design; max speed 15000 RPM

Quick specs
Rated Power: 100 W
Rated Voltage: 24 ±10% VDC
Rated Speed: 10000 RPM
Rated Torque: 0.096 N·m
Rated Current: 10 A
Frame Size: 57 mm (NEMA 23)

Electrical specifications

• Poles: 4
• Phases: 3
• Max Speed: 15000 RPM
• Max Torque: 0.19 N·m
• Voltage constant: 1.5 ±5% Vrms/KRPM
• Line resistance: 0.3 ±5% Ω (20°C)
• Line inductance: 0.23 ±10% mH
• Insulation resistance: 100 MΩ @ 500 VDC
• Insulation class: B (130°C)

Mechanical & performance
Mechanical drawing and torque-speed curve are provided for mounting, dimensional reference and performance characterization. Weight: 0.9 kg. Part number: CW57BLMA54-100L2100-03.

Technical specifications

• Model / Part number: CW57BLMA54-100L2100-03
• Frame size: 57 mm (NEMA 23)
• Rated power: 100 W
• Rated voltage: 24 ±10% VDC
• Rated speed: 10000 RPM
• Rated torque: 0.096 N·m
• Rated current: 10 A
• Max speed: 15000 RPM
• Max torque: 0.19 N·m
• Poles: 4
• Phases: 3
• Weight: 0.9 kg
• Voltage constant: 1.5 ±5% Vrms/KRPM
• Line resistance: 0.3 ±5% Ω (20°C)
• Line inductance: 0.23 ±10% mH
• Insulation resistance: 100 MΩ @ 500 VDC
• Insulation class: B (130°C)
