Brushless motor CW86BLA126-660L430-00
DC3-phaseBLDC

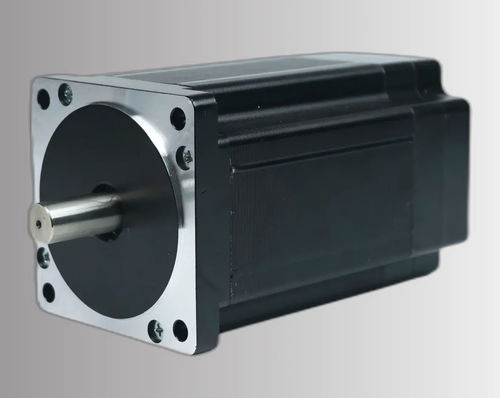

Brushless motor - CW86BLA126-660L430-00 - NEOTON MOTOR - DC / 3-phase / BLDC
Brushless motor - CW86BLA126-660L430-00 - NEOTON MOTOR - DC / 3-phase / BLDC
Brushless motor - CW86BLA126-660L430-00 - NEOTON MOTOR - DC / 3-phase / BLDC - image - 2
Add to favorites
Compare this product
Go to the NEOTON MOTOR website for more information

Characteristics

Type
DC, 3-phase, brushless, BLDC
Voltage
48 V
Configuration
NEMA 34
Number of poles
8-pole
Applications
for robotics
Other characteristics
precision, high-precision, motion control
Power

0.66 kW
(0.9 hp)

Intensity

19 A

Torque

Min.: 2.1 Nm
(1.548881 ft.lb)

Max.: 4.2 Nm
(3.097761 ft.lb)

Rotational speed

Min.: 3,000 rpm
(18,849.5559 rad.min-1)

Max.: 3,500 rpm
(21,991.1486 rad.min-1)

Diameter

86 mm
(3.39 in)

Description

Product Overview
The CW86BLA126-660L430-00 is a 86mm (NEMA 34) 3-phase brushless DC motor engineered for industrial automation, robotics and precision motion control. Nominal ratings: 660 W output, 48 ±10% VDC supply, 3000 RPM rated speed and 2.1 N·m rated torque.

Key Highlights
  • 660 W rated power
  • 48 ±10% VDC supply voltage
  • 2.1 N·m rated torque at 3000 RPM
  • 86mm (NEMA 34) frame size
  • 3‑phase brushless DC topology for smooth torque delivery


Quick Specs
Rated Power — 660 W
Rated Voltage — 48 ±10% VDC
Rated Speed — 3000 RPM
Rated Torque — 2.1 N·m
Rated Current — 19 A
Frame Size — 86mm (NEMA 34)
Part Number — CW86BLA126-660L430-00

Electrical Specifications
Poles — 8
Phases — 3
Rated Voltage — 48 ±10% VDC
Rated Power — 660 W
Rated Speed — 3000 RPM
Rated Torque — 2.1 N·m
Rated Current — 19 A
Max Speed — 3500 RPM
Max Torque — 4.2 N·m
Voltage Constant — 10 ±5% V/kRPM
Line Resistance — 0.12 ±5% Ω (20°C)
Line Inductance — 0.34 ±10% mH
Insulation Resistance — 100 MΩ @ 500 VDC
Insulation Class — B (130°C)
Weight — 4 kg
Frame Size — 86mm (NEMA 34)
Part Number — CW86BLA126-660L430-00

Mechanical & Performance
Mechanical drawing and torque‑speed curve are available to support mounting, integration and system performance analysis. Use the provided dimensions and connectors to verify compatibility with drives and feedback devices.

Features / Technical Specifications
  • Poles: 8
  • Phases: 3
  • Rated Voltage: 48 ±10% VDC
  • Rated Power: 660 W
  • Rated Speed: 3000 RPM
  • Rated Torque: 2.1 N·m
  • Rated Current: 19 A
  • Max Speed: 3500 RPM
  • Max Torque: 4.2 N·m
  • Voltage Constant: 10 ±5% V/kRPM
  • Line Resistance: 0.12 ±5% Ω (20°C)
  • Line Inductance: 0.34 ±10% mH
  • Insulation Resistance: 100 MΩ @ 500 VDC
  • Insulation Class: B (130°C)
  • Weight: 4 kg
  • Frame Size: 86mm (NEMA 34)
  • Part Number: CW86BLA126-660L430-00
