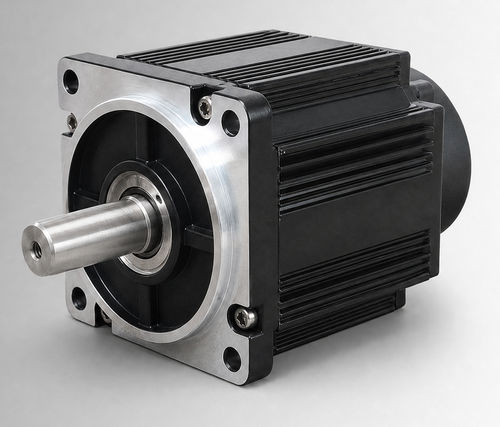

BLDC motor CW110BLBT-05030-L6-H

96 Vwith codercompact

Product Overview
CW110BLBT-05030-L6-H is a 110 mm framed high-power brushless DC motor rated at 1550 W, 96VDC, 5 N·m and 3000 rpm. It is designed for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions and brushed-DC upgrade projects, and can be considered for compact industrial equipment and auxiliary drives when voltage, load, duty cycle, installation interface and environmental conditions are confirmed for the application.

Key Highlights

• 1550 W rated power
• 96VDC rated voltage
• 5 N·m rated torque at 3000 rpm
• 19±10% Arms rated current

Summary Parameters
Rated Power — 1550 W
Rated Voltage — 96VDC
Rated Torque — 5 N·m
Rated Speed — 3000 rpm
Rated Current — 19±10% Arms
Frame Size — 110 mm

Electrical & Mechanical Specifications (detailed)

• Rated Power: 1550 W
• Rated Voltage: 96VDC
• Rated Torque: 5 N·m
• Rated Speed: 3000 rpm
• Rated Current: 19±10% Arms
• Frame Size: 110 mm
• Torque Constant: 0.25±10% N·m/A
• Rotor Inertia: 7.7±10% kg·m² × 10⁻⁴
• Back EMF: 15.6±10% V/krpm
• Line Inductance: 0.16±10% mH
• Line Resistance: 0.024±10% Ω
• Body Length (L): 126 mm
• Body Length with Brake (LB): 171 mm
• Weight: 4.14/6.25 kg
• Feedback Element (option): Magnetic Hall / Hall + 2500-line incremental encoder (optional)
• Insulation Resistance: DC500V, >20 MΩ (Class F)
• Dielectric Strength: 800VAC/1s/5mA
• Operating Environment: Temperature: -20 to 40°C (-40 to 40°C optional); Humidity: 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding stated temperature or altitude ranges)
• Protection Class: IP54 (IP65 optional)
• Part Number: CW110BLBT-05030-L6-H
