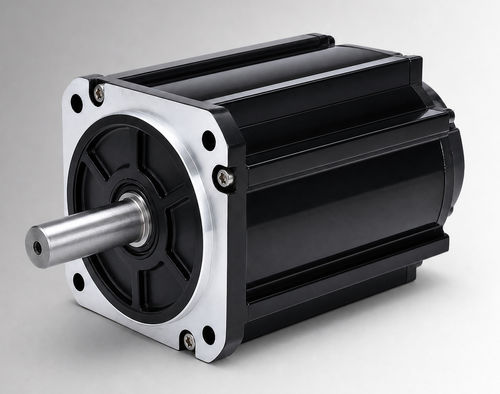

Brushless motor CW130BLBT-05030-L9-H

BLDC144 Vwith brake

Product Overview
CW130BLBT-05030-L9-H is a 130 mm framed high-power brushless DC (BLDC) motor rated 1550 W and 144 VDC. It delivers 5 N·m at 3000 rpm and is designed for OEM and system integration in electro-hydraulic pump drives, mobile work functions and as an upgrade for brushed DC applications. Evaluate suitability when project voltage, load, duty cycle, mounting interface and environmental conditions are defined.

Key Highlights

• 1550 W rated power
• 144 VDC rated voltage
• 5 N·m rated torque at 3000 rpm
• Rated current 12.5±10% Arms

Technical Specifications

• Rated Power — 1550 W
• Rated Voltage — 144VDC
• Rated Torque — 5 N·m
• Rated Speed — 3000 rpm
• Rated Current — 12.5±10% Arms
• Frame Size — 130 mm
• Torque Constant — 0.39±10% N·m/A
• Rotor Inertia — 12±10% kg·m² × 10⁻⁴
• Back EMF — 24±10% V/krpm
• Line Inductance — Not specified; tolerance ±10%
• Line Resistance — Not specified; tolerance ±10%
• Body Length (L) — 119 mm
• Body Length with Brake (LB) — 166 mm
• Weight — 6 / 7.8 kg (without / with brake)
• Feedback Element (option) — Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Insulation Resistance — DC500V, >20 MΩ (Class F)
• Dielectric Strength — 800VAC / 1s / 5mA
• Operating Environment — Temperature -20 to 40°C (optionally -40 to 40°C); Humidity 20%–80% RH (non-condensing); altitude below 1000 m (derate beyond stated ranges)
• Protection Class — IP54 (IP65 optional)
• Part Number — CW130BLBT-05030-L9-H

Options & Mechanical Details

• Frame: 130 mm standard; available fan-cooled variant
• Mechanical lengths: L = 119 mm, LB (with brake) = 166 mm
• Weight: 6 kg (standard) / 7.8 kg (with brake)
• Feedback options: Magnetic Hall or Hall + 2500-line incremental encoder
• Protection and environment options: IP65 upgrade and extended -40°C qualification available
• Mechanical drawings and torque-speed characteristic plots available for integration

Applications

• Electro-hydraulic pump drives
• Mobile equipment and vehicle work functions
• Brushed DC motor retrofit and upgrade projects
• Compact industrial equipment and auxiliary drives
