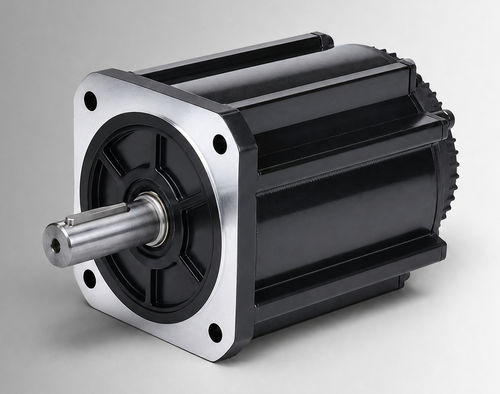

Brushless motor CW180BLBT-48015-L6-H

DCBLDC96 V

Overview
CW180BLBT-48015-L6-H is a 180 mm framed high-power brushless DC motor rated 7500 W at 96 VDC. Designed for OEM evaluation and system integration, it is suitable for electro-hydraulic pump drives, mobile work functions, brushed-DC upgrades and compact industrial auxiliary drives when electrical and environmental constraints are validated for the project.

Key Highlights

• Rated power: 7500 W
• Rated voltage: 96 VDC
• Rated torque: 48 N·m at 1500 rpm
• Rated current: 102±10% Arms

Electrical & Mechanical Specifications (summary)
Rated Power: 7500 W
Rated Voltage: 96 VDC
Rated Torque: 48 N·m
Rated Speed: 1500 rpm
Rated Current: 102±10% Arms
Frame Size: 180 mm
Torque Constant: 0.47±10% N·m/A
Rotor Inertia: 150±10% kg·m² × 10⁻⁴
Back EMF: 28.5±10% V/krpm
Line Inductance: Not specified; tolerance ±10%
Line Resistance: Not specified; tolerance ±10%
Body Length (L): 264 mm
Body Length with Brake (LB): 319 mm
Weight: 32/34 kg (depending on configuration)
Feedback Element (Option): Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance: DC500V, >20 MΩ (Class F)
Dielectric Strength: 800VAC/1s/5mA
Operating Environment: Temperature: -20 to 40°C (−40 to 40°C optional); Humidity: 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding the stated temperature or altitude range)
Protection Class: IP54 (IP65 optional)
Part Number: CW180BLBT-48015-L6-H

Mechanical Drawings & Characteristics
Mechanical drawing — 180 mm standard structure (available)
Mechanical drawing — 180 mm fan-cooled structure (available)
Torque-speed characteristics (available)

Technical specifications

• Model / Part Number: CW180BLBT-48015-L6-H
• Frame size: 180 mm
• Rated power: 7500 W
• Rated voltage: 96 VDC
• Rated torque: 48 N·m
• Rated speed: 1500 rpm
• Rated current: 102±10% Arms
• Torque constant: 0.47±10% N·m/A
• Back EMF: 28.5±10% V/krpm
• Rotor inertia: 150±10% ×10⁻⁴ kg·m²
• Body length (L): 264 mm; with brake (LB): 319 mm
• Weight: 32/34 kg (depending on configuration)
• Feedback options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Insulation: DC500V, >20 MΩ (Class F); Dielectric strength: 800VAC/1s/5mA
• Operating environment: -20 to 40°C (optionally -40 to 40°C); 20%–80% RH non-condensing; altitude below 1000 m (derate above)
• Protection class: IP54 (IP65 optional)
