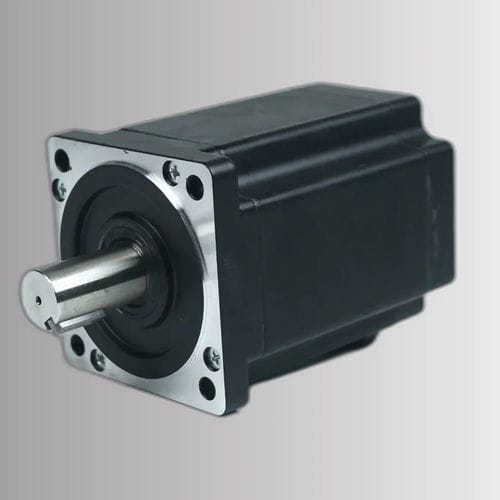

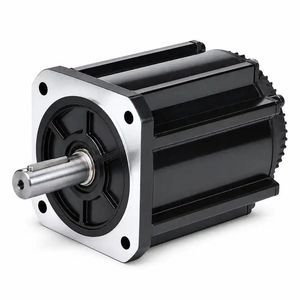

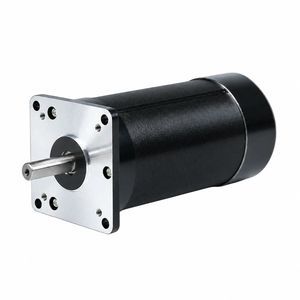

Brushless motor CW80BLMC80-704L870-00

DC3-phaseBLDC

Overview
The CW80BLMC80-704L870-00 is an 80 mm (NEMA 32) 3-phase brushless DC (BLDC) motor delivering 704 W at a 100 ±5% VDC supply and a nominal speed of 7000 RPM. It is intended for industrial automation, robotics and precision motion control systems where compact size and high-speed performance are required.

Key Highlights

• 704 W rated power
• 100 ±5% VDC supply voltage
• 0.96 Nm rated torque at 7000 RPM
• 80 mm (NEMA 32) frame size
• 3-phase brushless design for smooth operation

Quick specifications
Rated Power: 704 W
Rated Voltage: 100 ±5% VDC
Rated Speed: 7000 RPM
Rated Torque: 0.96 Nm
Rated Current: 7.5 A
Frame Size: 80 mm (NEMA 32)
Part Number: CW80BLMC80-704L870-00

Electrical Specifications
Poles — 4
Phases — 3
Rated Voltage — 100 ±5% VDC
Rated Power — 704 W
Rated Speed — 7000 RPM
Rated Torque — 0.96 Nm
Rated Current — 7.5 A
Max Torque — 1.92 Nm
Voltage Constant — TBD ±5% V/kRPM
Line Resistance — TBD ±5% Ω (20℃)
Line Inductance — TBD ±10% mH
Insulation Resistance — 100 MΩ @ 500 VDC
Insulation Class — F (155℃)
Weight — TBD kg
Frame Size — 80 mm (NEMA 32)
Part Number — CW80BLMC80-704L870-00

Mechanical & Performance
Mechanical drawing is available for the 80 mm BLDC motor series. A torque–speed performance curve specific to the CW80BLMC80-704L870-00 is provided to support system integration and control tuning.

Technical features

• Part Number: CW80BLMC80-704L870-00
• Series: 80BLMC Series
• Frame size: 80 mm (NEMA 32)
• Rated power: 704 W
• Rated voltage: 100 ±5% VDC
• Rated speed: 7000 RPM
• Rated torque: 0.96 Nm
• Rated current: 7.5 A
• Maximum torque: 1.92 Nm
• Poles: 4
• Phases: 3
• Insulation resistance: 100 MΩ @ 500 VDC
• Insulation class: F (155℃)
• Mechanical drawing: available
• Torque-speed curve: available for CW80BLMC80-704L870-00
