Brushless motor CW42BLB38-16L218-00

DC3-phaseBLDC

Product overview

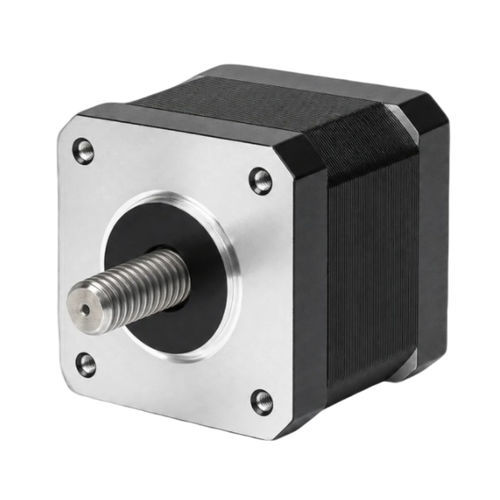

The CW42BLB38-16L218-00 is a 42 mm (NEMA 17) 3-phase brushless DC (BLDC) motor designed for industrial automation, robotics and precision motion control. Rated power: 16 W; rated voltage: 24 ±10% VDC; rated speed: 1800 RPM. Compact 42 mm frame with 8 poles provides suitable torque for small form-factor systems.

Key highlights

• 16 W rated power
• 24 ±10% VDC supply voltage
• 0.085 Nm rated torque at 1800 RPM
• 42 mm (NEMA 17) frame size
• 3-phase brushless DC design for smooth operation

Electrical specifications
Poles: 8
Phases: 3
Rated Voltage: 24 ±10% VDC
Rated Power: 16 W
Rated Speed: 1800 RPM
Rated Torque: 0.085 Nm
Rated Current: 1.24 A
Max Speed: 2300 RPM
Max Torque: 0.17 Nm
Voltage Constant: 5.9 ±5% V/kRPM
Line Resistance: 4.3 ±5% Ω (20°C)
Line Inductance: 2.0 ±10% mH
Insulation Resistance: 100 MΩ @ 500 VDC
Insulation Class: B (130°C)
Weight: 0.3 kg
Frame Size: 42 mm (NEMA 17)
Part Number: CW42BLB38-16L218-00

Mechanical & performance
Mechanical drawing and torque-speed curve are available for model CW42BLB38-16L218-00 to support mounting, integration and sizing in motion systems.

Typical applications

• Industrial automation and conveyors
• Robotics and collaborative robots
• Precision positioning and instrumentation
• Servo systems, gimbals and small actuators

Ordering & part number
Reference: CW42BLB38-16L218-00. Weight: 0.3 kg. Contact supplier for options on windings, connectors and mounting.
