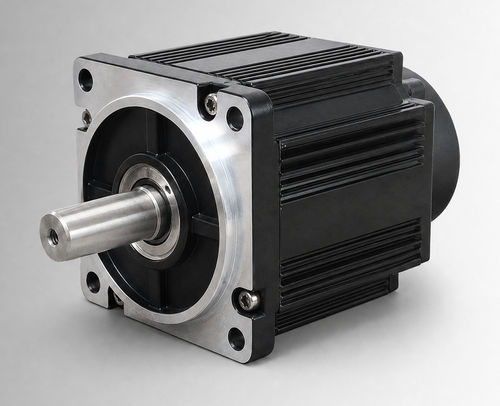

Brushless motor CW110BLBT-05030-L9-H

BLDC144 Vwith brake

Product Overview
CW110BLBT-05030-L9-H is a 110 mm framed brushless DC (BLDC) motor rated 1550 W and 144 VDC. It delivers 5 N·m at 3000 rpm and is designed for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions and as a replacement for brushed DC designs. It is also suitable for compact industrial equipment and auxiliary drives when project voltage, load, duty cycle, mounting interface and environmental constraints are confirmed.

Key Highlights

• Rated power: 1550 W
• Rated voltage: 144 VDC
• Rated torque: 5 N·m @ 3000 rpm
• Rated current: 12.6 ±10% Arms

Electrical & Mechanical Specifications
Rated Power: 1550 W
Rated Voltage: 144 VDC
Rated Torque: 5 N·m
Rated Speed: 3000 rpm
Rated Current: 12.6 ±10% Arms
Frame Size: 110 mm
Torque Constant: 0.39 ±10% N·m/A
Rotor Inertia: 7.7 ±10% ×10⁻⁴ kg·m²
Back EMF: 24 ±10% V/krpm
Line Inductance / Resistance: not specified; tolerance ±10%
Body Length (L): 126 mm
Body Length with Brake (LB): 171 mm
Weight: 4.14 kg (without brake) / 6.25 kg (with brake)
Feedback Element (option): Magnetic Hall / Hall + 2500-line incremental encoder
Insulation Resistance: DC 500 V, >20 MΩ (Class F)
Dielectric Strength: 800 VAC / 1 s / 5 mA
Protection Class: IP54 (IP65 optional)
Part Number: CW110BLBT-05030-L9-H

Applications
Designed for integration into OEM systems and industrial installations where compact, high-power BLDC motion is required. Typical applications include electro-hydraulic pump drives, mobile machinery actuators, auxiliary drives and retrofits of brushed DC systems.

Feedback & Options
Available with magnetic Hall sensors or Hall sensors combined with a 2500-line incremental encoder. Optional configurations include IP65 protection and extended operating temperature ranges (-40°C option).

Environmental & Protection
Operating temperature: -20 to 40°C (optionally -40 to 40°C). Humidity: 20% to 80% RH non-condensing. Altitude: nominal use below 1000 m (derating recommended above stated temperature or altitude). Insulation class F.

Technical Characteristics

• Frame size: 110 mm
• Body length L/LB: 126 / 171 mm
• Weight: 4.14 / 6.25 kg
• Torque constant: 0.39 ±10% N·m/A
• Rotor inertia: 7.7 ±10% ×10⁻⁴ kg·m²
• Back EMF: 24 ±10% V/krpm
• Protection: IP54 (IP65 optional)
• Feedback: Hall or Hall + 2500-line encoder
• Insulation: DC500V >20 MΩ; Dielectric: 800VAC/1s/5mA
