DC motor CW57BLMA54-100L2100-04

3-phasebrushlessBLDC

Product Overview

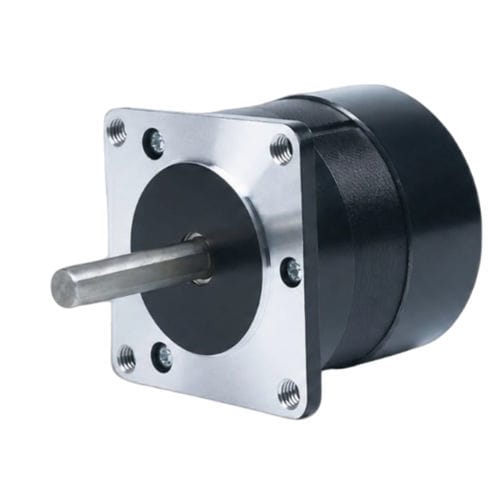

The CW57BLMA54-100L2100-04 is a 57mm (NEMA 23) 3-phase brushless DC motor delivering 100 W nominal power at a 24 ±10% VDC supply and a rated speed of 10000 RPM. Engineered for industrial automation, robotics and precision motion control where compact size and predictable performance are required.

Key Highlights

• 100 W rated power
• 24 ±10% VDC supply voltage
• 0.096 N·m rated torque at 10000 RPM
• 57 mm (NEMA 23) frame size
• 3-phase brushless design for smooth, controllable motion

Summary Cards
Rated Power: 100 W
Rated Voltage: 24 ±10% VDC
Rated Speed: 10000 RPM
Rated Torque: 0.096 N·m
Rated Current: 10 A
Frame Size: 57 mm (NEMA 23)

Electrical Specifications

• Poles: 4
• Phases: 3
• Rated Voltage: 24 ±10% VDC
• Rated Power: 100 W
• Rated Speed: 10000 RPM
• Rated Torque: 0.096 N·m
• Rated Current: 10 A
• Max Speed: 15000 RPM
• Max Torque: 0.19 N·m
• Voltage Constant: 1.5 ±5% Vrms/KRPM
• Line Resistance: 0.19 ±5% Ω (20℃)
• Line Inductance: 0.22 ±10% mH
• Insulation Resistance: 100 MΩ @ 500 VDC
• Insulation Class: B (130℃)
• Weight: 0.8 kg

Mechanical & Performance
A mechanical drawing and a torque–speed curve are provided for the 57 mm BLDC series, with model-specific dimensions and performance data for CW57BLMA54-100L2100-04 to support integration and system design.

caractéristiques / spécifications techniques

• Model / Part Number: CW57BLMA54-100L2100-04
• Series: 57BLMA Series
• Frame size: 57 mm (NEMA 23)
• Rated Power: 100 W
• Rated Voltage: 24 ±10% VDC
• Rated Speed: 10000 RPM (rated)
• Max Speed: 15000 RPM
• Rated Torque: 0.096 N·m
• Max Torque: 0.19 N·m
• Rated Current: 10 A
• Phases: 3 (3-phase brushless)
• Poles: 4
• Voltage Constant: 1.5 ±5% Vrms/KRPM
• Line Resistance: 0.19 ±5% Ω (20℃)
• Line Inductance: 0.22 ±10% mH
• Insulation Resistance: 100 MΩ @ 500 VDC
• Insulation Class: B (130℃)
• Weight: 0.8 kg
