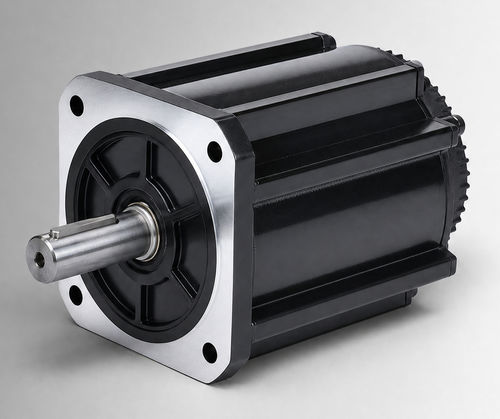

Brushless motor CW180BLBT-15015-L5-H

DCBLDC72 V

Product Overview
CW180BLBT-15015-L5-H is a 180 mm framed brushless DC motor rated 2350 W, 72 VDC, 15 N·m at 1500 rpm. Designed for OEM and system integration evaluation, it is suitable for electro-hydraulic pump drives, mobile work functions and retrofits from brushed DC, and can be considered for compact industrial equipment and auxiliary drives when project voltage, load, duty cycle, installation interface and environment are validated.

Key Highlights

• Rated power: 2350 W
• Rated voltage: 72 VDC
• Rated torque: 15 N·m @ 1500 rpm
• Rated current: 42±10% Arms

Quick Specs (summary)

• Frame size: 180 mm
• Rated speed: 1500 rpm
• Torque constant: 0.35±10% N·m/A
• Rotor inertia: 60±10% kg·m² × 10⁻⁴
• Back EMF: 21.4±10% V/krpm

Electrical & Mechanical Specifications
Rated Power : 2350 W
Rated Voltage : 72 VDC
Rated Torque : 15 N·m
Rated Speed : 1500 rpm
Rated Current : 42±10% Arms
Frame Size : 180 mm
Torque Constant : 0.35±10% N·m/A
Rotor Inertia : 60±10% kg·m² × 10⁻⁴
Back EMF : 21.4±10% V/krpm
Line Inductance : Not specified; tolerance ±10%
Line Resistance : Not specified; tolerance ±10%
Body Length (L) : 170 mm
Body Length with Brake (LB) : 264 mm
Weight : 14.5/32 kg
Feedback Element (Option) : Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance : DC500V, >20 MΩ (Class F)
Dielectric Strength : 800VAC/1s/5mA
Operating Environment : Temperature: -20 to 40°C (-40 to 40°C optional); Humidity: 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding stated ranges)
Protection Class : IP54 (IP65 optional)
Part Number : CW180BLBT-15015-L5-H

Mechanical & Performance Illustrations
Mechanical drawings and torque-speed characteristic charts are provided for the 180 mm standard and 180 mm fan-cooled structures to support installation and system-integration decisions.

Technical Specifications

• Model / Part Number: CW180BLBT-15015-L5-H
• Frame size: 180 mm
• Rated power: 2350 W
• Rated voltage: 72 VDC
• Rated torque: 15 N·m @ 1500 rpm
• Rated speed: 1500 rpm
• Rated current: 42±10% Arms
• Torque constant: 0.35±10% N·m/A
• Rotor inertia: 60±10% kg·m² × 10⁻⁴
• Back EMF: 21.4±10% V/krpm
• Body length: 170 mm (264 mm with brake)
• Weight: 14.5/32 kg
• Protection: IP54 (IP65 optional)
• Feedback options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
