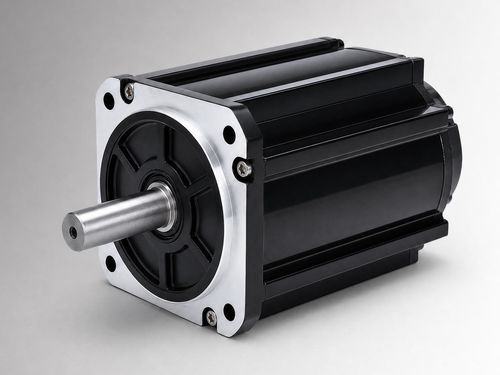

Brushless motor CW130BLBT-05030-L1-H

DCdirect currentBLDC

Overview
CW130BLBT-05030-L1-H is a 130 mm frame brushless DC motor rated 1550 W, 24 VDC, 5 N·m at 3000 rpm. It is designed for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions and brushed DC upgrade projects. It may also be used for compact industrial equipment and auxiliary drives when project voltage, load, duty cycle, installation interface and environmental conditions are confirmed.

Key highlights

• 1550 W rated power
• 24 VDC rated voltage
• 5 N·m rated torque at 3000 rpm
• 76±10% Arms rated current

Electrical & Mechanical Specifications

• Rated Power: 1550 W
• Rated Voltage: 24 VDC
• Rated Torque: 5 N·m
• Rated Speed: 3000 rpm
• Rated Current: 76±10% Arms
• Frame Size: 130 mm
• Torque Constant: 0.06±10% N·m/A
• Rotor Inertia: 12±10% kg·m² × 10⁻⁴
• Back EMF: 3.9±10% V/krpm
• Line Inductance: 0.027±10% mH
• Line Resistance: 0.014±10% Ω
• Body Length (L): 119 mm; Body Length with Brake (LB): 166 mm
• Weight: 6 / 7.8 kg

Technical specifications

• Feedback element (option): Magnetic Hall or Hall + 2500-line incremental encoder
• Insulation resistance: DC 500 V, >20 MΩ (Class F)
• Dielectric strength: 800 VAC / 1 s / 5 mA
• Operating environment: Temperature -20 to 40 °C (optional -40 to 40 °C); Humidity 20–80% RH (non-condensing); Altitude below 1000 m (derate above)
• Protection class: IP54 (IP65 optional)
• Part number: CW130BLBT-05030-L1-H
