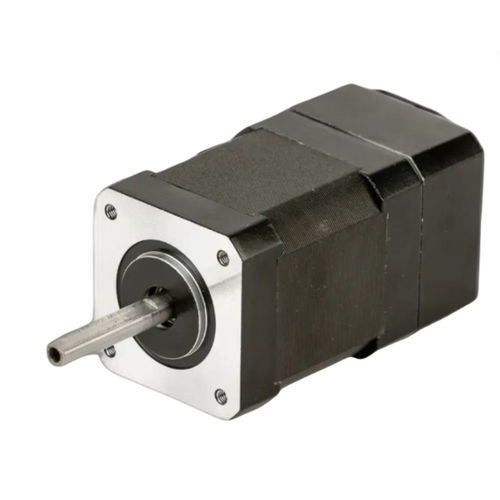

Brushless motor CW42BLD97-120L280-00DCthree-phase24 V
Add to favorites
Compare this product
Characteristics
- Type
- DC, three-phase, brushless
- Voltage
- 24 V
- Configuration
- NEMA 17
- Number of poles
- 4-pole
- Applications
- industrial, for robotics
- Other characteristics
- precision, with brushless DC motor
- Power
0.12 kW
(0.16 hp)- Intensity
6.1 A
- Torque
Min.: 0.14 Nm
(0.103259 ft.lb)Max.: 0.28 Nm
(0.206517 ft.lb)- Rotational speed
Min.: 8,000 rpm
(50,265.4825 rad.min-1)Max.: 10,800 rpm
(67,858.4013 rad.min-1)- Diameter
42 mm
(1.65 in)
Description
Product Overview
The CW42BLD97-120L280-00 is a 42 mm (NEMA 17) 3-phase brushless DC motor designed for industrial automation, robotics and precision motion-control applications. Rated at 120 W with a 24 ±10% VDC supply and a rated speed of 8000 RPM.
Key Highlights
Quick Specs
Rated Power: 120 W
Rated Voltage: 24 ±10% VDC
Rated Speed: 8000 RPM
Rated Torque: 0.14 Nm
Rated Current: 6.1 A
Frame Size: 42 mm (NEMA 17)
Electrical Specifications
Poles: 4
Phases: 3
Rated Voltage: 24 ±10% VDC
Rated Power: 120 W
Rated Speed: 8000 RPM
Rated Torque: 0.14 Nm
Rated Current: 6.1 A
Max Speed: 10800 RPM
Max Torque: 0.28 Nm
Voltage Constant: 1.5 ±5% Vrms/krpm
Line Resistance: 0.17 ±5% Ω (20℃)
Line Inductance: 0.22 ±10% mH
Insulation Resistance: 50 MΩ @ 500 VDC
Insulation Class: F (155℃)
Weight: 0.8 kg
Frame Size: 42 mm (NEMA 17)
Part Number: CW42BLD97-120L280-00
Mechanical & Performance
Mechanical drawing and torque-speed curve are available for this model (mechanical drawing and performance curves shown on the product page).
Technical specifications
The CW42BLD97-120L280-00 is a 42 mm (NEMA 17) 3-phase brushless DC motor designed for industrial automation, robotics and precision motion-control applications. Rated at 120 W with a 24 ±10% VDC supply and a rated speed of 8000 RPM.
Key Highlights
- Rated power: 120 W
- Supply voltage: 24 ±10% VDC
- Rated torque: 0.14 Nm at 8000 RPM
- Frame size: 42 mm (NEMA 17)
- 3-phase brushless design for smooth, controllable torque
Quick Specs
Rated Power: 120 W
Rated Voltage: 24 ±10% VDC
Rated Speed: 8000 RPM
Rated Torque: 0.14 Nm
Rated Current: 6.1 A
Frame Size: 42 mm (NEMA 17)
Electrical Specifications
Poles: 4
Phases: 3
Rated Voltage: 24 ±10% VDC
Rated Power: 120 W
Rated Speed: 8000 RPM
Rated Torque: 0.14 Nm
Rated Current: 6.1 A
Max Speed: 10800 RPM
Max Torque: 0.28 Nm
Voltage Constant: 1.5 ±5% Vrms/krpm
Line Resistance: 0.17 ±5% Ω (20℃)
Line Inductance: 0.22 ±10% mH
Insulation Resistance: 50 MΩ @ 500 VDC
Insulation Class: F (155℃)
Weight: 0.8 kg
Frame Size: 42 mm (NEMA 17)
Part Number: CW42BLD97-120L280-00
Mechanical & Performance
Mechanical drawing and torque-speed curve are available for this model (mechanical drawing and performance curves shown on the product page).
Technical specifications
- Model / Part Number: CW42BLD97-120L280-00
- Series: 42BLD Series
- Frame size: 42 mm (NEMA 17)
- Rated power: 120 W
- Rated voltage: 24 ±10% VDC
- Rated speed: 8000 RPM
- Rated torque: 0.14 Nm
- Rated current: 6.1 A
- Max speed: 10800 RPM
- Max torque: 0.28 Nm
- Voltage constant: 1.5 ±5% Vrms/krpm
- Line resistance: 0.17 ±5% Ω (20℃)
- Line inductance: 0.22 ±10% mH
- Insulation resistance: 50 MΩ @ 500 VDC
- Insulation class: F (155℃)
- Poles: 4
- Phases: 3
- Weight: 0.8 kg
