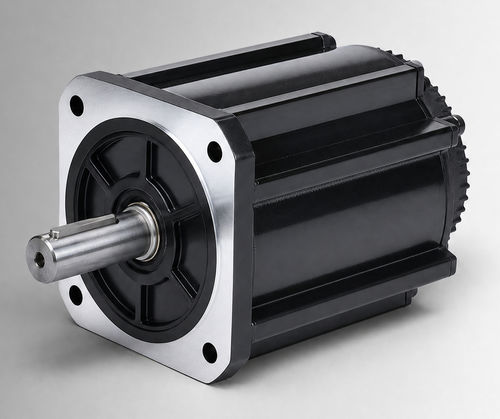

Brushless motor CW130BLBT-15030-L9-H

DCBLDC144 V

Product Overview
The CW130BLBT-15030-L9-H is a 130 mm framed brushless DC (BLDC) motor rated 4700 W at 144VDC, delivering 15 N·m at 3000 rpm. Designed for OEM integration and system evaluation, it suits electro-hydraulic pump drives, mobile work functions and brushed-DC upgrades, and can be applied to compact industrial equipment and auxiliary drives when project voltage, load, duty cycle, mounting interface and environment are validated.

Key Highlights

• Rated power: 4700 W
• Rated voltage: 144VDC
• Rated torque: 15 N·m at 3000 rpm
• Rated current: 38±10% Arms
• Frame size: 130 mm; Body length (L): 166 mm; With brake (LB): 221 mm
• Weight: 11 kg (standard) / 12.8 kg (with brake)
• Protection: IP54 (IP65 optional)
• Feedback options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)

Electrical & Mechanical Specifications

• Model / Part Number: CW130BLBT-15030-L9-H
• Rated Power: 4700 W
• Rated Voltage: 144VDC
• Rated Torque: 15 N·m
• Rated Speed: 3000 rpm
• Rated Current: 38±10% Arms
• Torque Constant: 0.4±10% N·m/A
• Back EMF: 24±10% V/krpm
• Rotor Inertia: 17±10% kg·m² × 10⁻⁴
• Line Inductance / Resistance: not specified; tolerance ±10%
• Body Length (L): 166 mm; With Brake (LB): 221 mm
• Weight: 11 / 12.8 kg
• Insulation Resistance: DC500V, >20 MΩ (Class F)
• Dielectric Strength: 800VAC / 1s / 5mA
• Operating Temperature: -20 to 40°C (optionally -40 to 40°C)
• Humidity: 20% to 80% RH (non‑condensing)
• Altitude: suitable below 1000 m (derating may apply above stated temperature or altitude)
• Protection Class: IP54 (IP65 optional)

Applications

• Electro-hydraulic pump drives for mobile and industrial systems
• Mobile work functions and vehicle auxiliary drives
• Replacement or upgrade of brushed DC motor installations
• Compact industrial equipment subject to validated system conditions (voltage, load, duty cycle, installation interface, environment)

Mechanical & Performance Data
Mechanical drawings for the 130 mm standard and fan-cooled structures are available, together with torque‑speed characteristic diagrams for mounting and performance reference. Body length (L) and brake length (LB) dimensions should be checked against the installation interface.

Ordering & Options

• Part Number: CW130BLBT-15030-L9-H
• Feedback: Magnetic Hall standard; Hall + 2500-line incremental encoder optional
• Protection upgrade: IP65 available on request
• Ambient/temp options: -40 to 40°C available on request
• Contact sales for custom configurations, lead times and integration support
