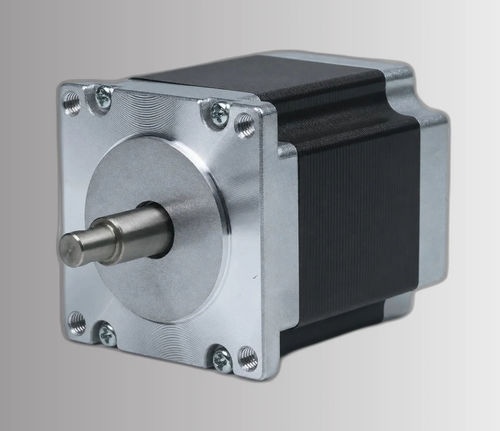

Brushless motor CW60BLMA79-15L207-00

DCthree-phaseBLDC

Overview
The CW60BLMA79-15L207-00 is a 60 mm (NEMA 24) 3-phase brushless DC motor with a 10-pole topology, providing 15 W at 24 ±10% VDC. Rated at 700 RPM and 0.2 N·m with a 0.4 N·m peak, the motor is designed for low-speed, high-torque industrial applications and compact assemblies. Insulation class B and a 79 mm body length facilitate integration in constrained spaces.

Key Highlights

• Rated power: 15 W at 24 ±10% VDC
• Rated torque: 0.2 N·m at 700 RPM; peak torque: 0.4 N·m
• 60 mm (NEMA 24) frame with 79 mm body length
• 10-pole, 3-phase design for smooth low-speed operation
• Class B insulation, weight 0.8 kg

Product Datasheet
Datasheet available for part number CW60BLMA79-15L207-00; mechanical drawing and torque-speed curve provided for mounting and performance reference.

Electrical Specifications

• Part number: CW60BLMA79-15L207-00
• Poles: 10
• Phases: 3
• Rated voltage: 24 ±10% VDC
• Rated power: 15 W
• Rated speed: 700 RPM
• Rated torque: 0.2 N·m
• Peak/max torque: 0.4 N·m
• Rated current: 1.3 A
• Max speed: 1100 RPM
• Voltage constant: 20 ±5% Vrms/kRPM
• Line resistance: 4.4 ±5% Ω (20°C)
• Line inductance: 9.2 ±10% mH
• Insulation resistance: 100 MΩ (500 VDC)
• Insulation class: B (130°C)
• Weight: 0.8 kg

Mechanical & Performance
Compact 79 mm body for a 60 mm frame simplifies installation in space-restricted equipment. Mechanical drawing indicates mounting dimensions and shaft details; torque-speed curve supports selection for gearbox pairing and control tuning.

Applications

• Low-speed servomechanisms and precision positioning
• Industrial automation modules and conveyors
• Robotics joints and cobot end-effectors
• Medical devices and laboratory automation (where 24 VDC is required)
• Small-actuator and valve drive systems

Ordering & Part Number
Order by part number CW60BLMA79-15L207-00. Contact supplier for lead time, customization (connector, shaft options) and available datasheet/PDF.
