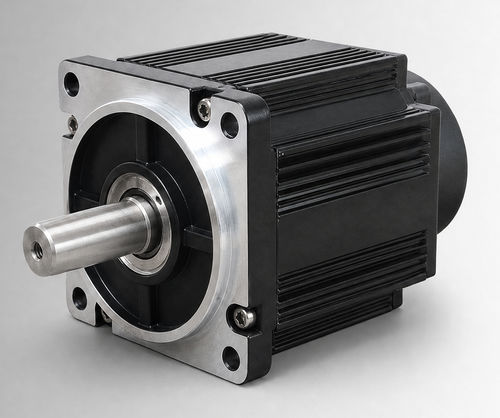

DC motor CW110BLBT-07530-L9-H

BLDC144 Vwith brake

Product Overview

CW110BLBT-07530-L9-H is a 110 mm framed brushless DC motor (BLDC) rated 2350 W at 144 VDC, delivering 7.5 N·m at 3000 rpm. It is intended for OEM evaluation and system integration in electro-hydraulic pump drives, mobile work functions, compact industrial equipment and auxiliary drives when voltage, load, duty cycle, mounting interface and environmental conditions are validated for the project.

Key Highlights

• Rated power: 2350 W
• Rated voltage: 144 VDC
• Rated torque: 7.5 N·m @ 3000 rpm
• Rated current: 19±10% Arms

Quick Specs (card summary) Rated Power: 2350 W
Rated Voltage: 144 VDC
Rated Torque: 7.5 N·m
Rated Speed: 3000 rpm
Rated Current: 19±10% Arms
Frame Size: 110 mm

Electrical & Mechanical Specifications

• Torque constant: 0.39±10% N·m/A
• Rotor inertia: 10.9±10% ×10⁻⁴ kg·m²
• Back EMF: 24±10% V/krpm
• Body length (L): 156 mm; with brake (LB): 193 mm
• Weight: 6.36 kg (no brake) / 8.47 kg (with brake)

Applications & Integration Typical use cases include electro-hydraulic pump drives, mobile machinery actuators and upgrades from brushed DC motors. Verify electrical compatibility, duty cycle, mechanical mounting and environmental limits (temperature, humidity, altitude) during system design and selection.

Options & Compliance

• Feedback: Magnetic Hall sensors or Hall + 2500-line incremental encoder (optional)
• Protection: IP54 standard (IP65 optional)
• Insulation: Class F; insulation resistance DC500V >20 MΩ; dielectric strength 800 VAC/1s/5 mA
• Operating environment: -20 to 40°C (optional -40 to 40°C), humidity 20–80% RH (non-condensing), altitude <1000 m (derate outside range)
• Part number: CW110BLBT-07530-L9-H
