Brushless motor CW80BLMC83-200L220-00

DC3-phaseBLDC

Product Overview

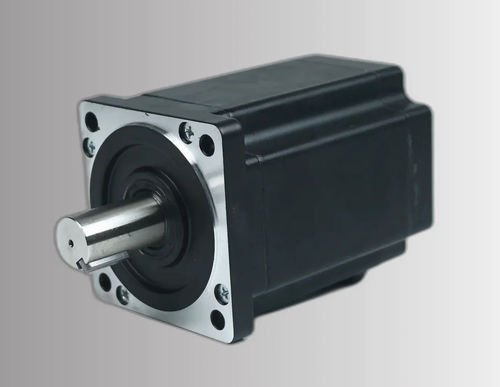

The CW80BLMC83-200L220-00 is an 80 mm (NEMA 32) 3-phase brushless DC motor rated 200 W. Designed for industrial automation, robotics and precision motion applications, it operates at 24 ±10% VDC with a rated speed of 2000 RPM and rated torque of 0.96 N·m.

Key Highlights

• Rated power: 200 W
• Supply voltage: 24 ±10% VDC
• Rated torque: 0.96 N·m at 2000 RPM
• Frame size: 80 mm (NEMA 32)
• 3-phase brushless design for precise speed and torque control
• Maximum speed: 3300 RPM; maximum torque: 1.92 N·m
• Rated current: 12 A; insulation class: F

Quick Specs

• Rated Power: 200 W
• Rated Voltage: 24 ±10% VDC
• Rated Speed: 2000 RPM
• Rated Torque: 0.96 N·m
• Rated Current: 12 A
• Frame Size: 80 mm (NEMA 32)
• Weight: 1.65 kg

Electrical specifications

• Poles: 4
• Phases: 3
• Voltage constant: 5.5 ±5% Vrms/kRPM
• Line resistance: 0.16 ±5% Ω (20°C)
• Line inductance: 0.5 ±10% mH
• Insulation resistance: 50 MΩ (500 VDC)
• Max Speed: 3300 RPM; Max Torque: 1.92 N·m

Mechanical drawing & Performance
Mechanical drawing and torque–speed curves are provided for the 80 mm BLDC motor series to assist with mounting, dimensional checks and performance evaluation. Refer to drawings for shaft dimensions, mounting hole pattern and connector locations.

Ordering & Support

• Part number: CW80BLMC83-200L220-00
• Weight: 1.65 kg
• Compatible with standard 3-phase BLDC controllers; consult sales for recommended driver settings
• Options and customizations (windings, connectors, mounting modifications) available on request
