DC motor CW57BLMA74-251L260-00
3-phasebrushless24 V

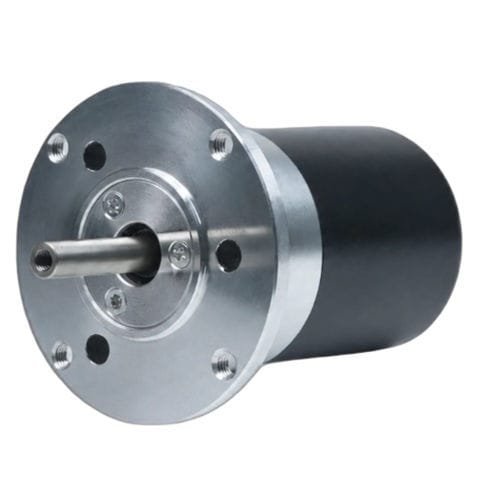

DC motor - CW57BLMA74-251L260-00 - NEOTON MOTOR - 3-phase / brushless / 24 V
DC motor - CW57BLMA74-251L260-00 - NEOTON MOTOR - 3-phase / brushless / 24 V
Add to favorites
Compare this product
Go to the NEOTON MOTOR website for more information

Characteristics

Type
DC, 3-phase, brushless
Voltage
24 V
Configuration
NEMA 23
Number of poles
4-pole
Applications
industrial, for robotics, for conveyors, packaging machine, for machine tools
Power

0.25 kW
(0.34 hp)

Intensity

11.5 A

Torque

Max.: 0.8 Nm
(0.59005 ft.lb)

Min.: 0.4 Nm
(0.295025 ft.lb)

Rotational speed

Max.: 7,500 rpm
(47,123.8898 rad.min-1)

Min.: 6,000 rpm
(37,699.1118 rad.min-1)

Diameter

57 mm
(2.24 in)

Description

Product Overview
The CW57BLMA74-251L260-00 is a 57mm (NEMA 23) 3-phase brushless DC motor delivering 251 W at 24 ±10% VDC with a rated speed of 6000 RPM and rated torque of 0.4 N·m. Designed for industrial automation, robotics and precision motion-control applications where compact size and repeatable performance are required.

Key Highlights
  • 251 W rated power
  • 24 ±10% VDC supply voltage
  • 0.4 N·m rated torque at 6000 RPM
  • 57mm (NEMA 23) frame size
  • 3-phase brushless design for smooth, controllable operation


Quick Specs (summary)
  • Rated Power: 251 W
  • Rated Voltage: 24 ±10% VDC
  • Rated Speed: 6000 RPM
  • Rated Torque: 0.4 N·m
  • Rated Current: 11.5 A
  • Frame Size: 57mm (NEMA 23)


Electrical Specifications
Parameter — Value
Poles — 4
Phases — 3
Rated Voltage — 24 ±10% VDC
Rated Power — 251 W
Rated Speed — 6000 RPM
Rated Torque — 0.4 N·m
Rated Current — 11.5 A
Max Speed — 7500 RPM
Max Torque — 0.8 N·m
Voltage Constant — 2.4 ±5% V/kRPM
Line Resistance — 0.12 ±5% Ω (20°C)
Line Inductance — 0.3 ±10% mH
Insulation Resistance — 100 MΩ @ 500 VDC
Insulation Class — B (130°C)
Weight — 0.78 kg
Frame Size — 57mm (NEMA 23)
Part Number — CW57BLMA74-251L260-00

Mechanical & Performance
  • Mechanical drawing and dimensional artwork available for the 57mm BLDC motor series
  • Torque-speed curve available for CW57BLMA74-251L260-00


Applications
  • Industrial automation and factory equipment
  • Robotics and cobots
  • Precision motion systems, CNC axes and positioning stages
  • Conveyors, packaging and material handling


Model / Characteristics
  • Model / Series: CW57BLMA74 (57BLMA series)
  • Frame: 57mm (NEMA 23)
  • Rated power: 251 W
  • Rated voltage: 24 ±10% VDC
  • Rated speed: 6000 RPM
  • Rated torque: 0.4 N·m
  • Rated current: 11.5 A
  • Maximum speed: 7500 RPM
  • Maximum torque: 0.8 N·m
  • Poles: 4
  • Phases: 3
  • Voltage constant: 2.4 ±5% V/kRPM
  • Line resistance: 0.12 ±5% Ω (20°C)
  • Line inductance: 0.3 ±10% mH
  • Insulation resistance: 100 MΩ (500 VDC)
  • Insulation class: B (130°C)
  • Weight: 0.78 kg
  • Part number: CW57BLMA74-251L260-00
