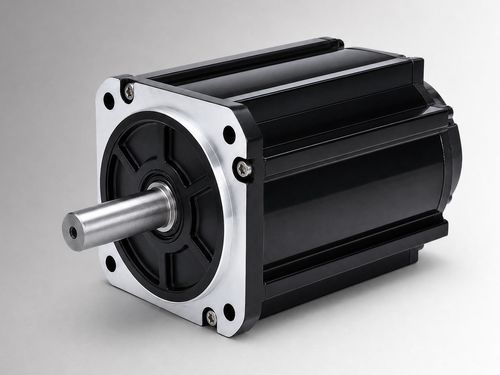

Brushless motor CW130BLBT-15025-L5-H

DCBLDC72 V

Product Overview
CW130BLBT-15025-L5-H is a 130 mm framed high-power brushless DC motor rated at 3800 W, 72VDC, 15 N·m, and 2500 rpm. It is intended for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions, and brushed DC upgrade projects, and can be assessed for compact industrial equipment and auxiliary drives when voltage, load, duty cycle, installation interface, and environmental conditions are confirmed for the application.

Key Highlights

• 3800 W rated power
• 72VDC rated voltage
• 15 N·m rated torque at 2500 rpm
• 65±10% Arms rated current

Quick Specs

• Rated Power: 3800 W
• Rated Voltage: 72VDC
• Rated Torque: 15 N·m
• Rated Speed: 2500 rpm
• Rated Current: 65±10% Arms
• Frame Size: 130 mm

Electrical & Mechanical Specifications (table)
Parameter | Value
Rated Power | 3800 W
Rated Voltage | 72VDC
Rated Torque | 15 N·m
Rated Speed | 2500 rpm
Rated Current | 65±10% Arms
Frame Size | 130 mm
Torque Constant | 0.24±10% N·m/A
Rotor Inertia | 17±10% kg·m² × 10⁻⁴
Back EMF | 14.2±10% V/krpm
Line Inductance | 0.128±10% mH
Line Resistance | 0.029±10% Ω
Body Length (L) | 166 mm
Body Length with Brake (LB) | 221 mm
Weight | 11 / 12.8 kg
Feedback Element (Option) | Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance | DC500V, >20 MΩ (Class F)
Dielectric Strength | 800VAC/1s/5mA
Operating Environment | Temperature: -20 to 40°C (optionally -40 to 40°C); Humidity: 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding the stated temperature or altitude range)
Protection Class | IP54 (IP65 optional)
Part Number | CW130BLBT-15025-L5-H

Mechanical & Performance Assets
Mechanical drawings and torque-speed characteristic images are provided for the 130 mm standard and fan-cooled structures to support integration, mounting and interface verification. These assets facilitate installation checks and performance matching during system design.

Technical Specifications

• Part Number: CW130BLBT-15025-L5-H
• Frame: 130 mm
• Rated Power: 3800 W
• Rated Voltage: 72 VDC
• Rated Torque: 15 N·m @ 2500 rpm
• Rated Speed: 2500 rpm
• Rated Current: 65±10% Arms
• Torque Constant: 0.24±10% N·m/A
• Back EMF: 14.2±10% V/krpm
• Line Inductance: 0.128±10% mH
• Line Resistance: 0.029±10% Ω
• Body Length: 166 mm (221 mm with brake)
• Weight: 11 / 12.8 kg (variants)
• Feedback options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Insulation: DC500V, >20 MΩ (Class F)
• Dielectric Strength: 800VAC/1s/5mA
• Operating Temp: -20 to 40°C (optionally -40 to 40°C)
• Protection: IP54 (IP65 optional)
