Brushless motor CW86BLA126-750H230-02
DC3-phase220 V

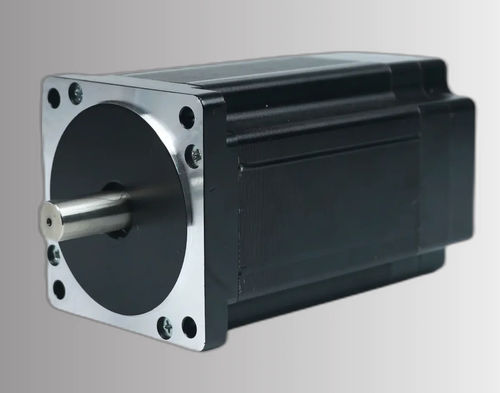

Brushless motor - CW86BLA126-750H230-02 - NEOTON MOTOR - DC / 3-phase / 220 V
Brushless motor - CW86BLA126-750H230-02 - NEOTON MOTOR - DC / 3-phase / 220 V
Brushless motor - CW86BLA126-750H230-02 - NEOTON MOTOR - DC / 3-phase / 220 V - image - 2
Add to favorites
Compare this product
Go to the NEOTON MOTOR website for more information

Characteristics

Type
DC, 3-phase, brushless
Voltage
220 V
Configuration
NEMA 34
Number of poles
8-pole
Applications
for industrial applications, for robotics, for conveyors, for machine tools, packaging machine
Other characteristics
high-precision
Power

0.75 kW
(1.02 hp)

Intensity

8.5 A

Torque

Min.: 2.4 Nm
(1.770149 ft.lb)

Max.: 4.8 Nm
(3.540298 ft.lb)

Rotational speed

Min.: 3,000 rpm
(18,849.5559 rad.min-1)

Max.: 3,500 rpm
(21,991.1486 rad.min-1)

Diameter

86 mm
(3.39 in)

Description

Product Overview
The CW86BLA126-750H230-02 is a 3-phase brushless DC motor with an 86mm (NEMA 34) frame, rated 750 W at 220 ± 10% VAC. It delivers a rated speed of 3000 RPM and a rated torque of 2.4 N·m for industrial automation, robotics and precision motion control applications.

Key Highlights
  • Model: CW86BLA126-750H230-02
  • 750 W rated power
  • 220 ± 10% VAC supply voltage
  • Rated torque 2.4 N·m at 3000 RPM (max torque 4.8 N·m)
  • 86mm (NEMA 34) frame, 3-phase brushless DC

Electrical Specifications
Poles: 8
Phases: 3
Rated Voltage: 220 ± 10% VAC
Rated Power: 750 W
Rated Speed: 3000 RPM
Rated Torque: 2.4 N·m
Rated Current: 8.5 A
Max Speed: 3500 RPM
Max Torque: 4.8 N·m
Voltage Constant: 51.67 ±5% V/kRPM
Line Resistance: 2.5 ±5% Ω (20°C)
Line Inductance: 7.0 ±10% mH
Insulation Resistance: 100 MΩ (500 VDC)
Insulation Class: B 130°C
Weight: 4 kg
Frame Size: 86mm (NEMA 34)
Part Number: CW86BLA126-750H230-02

Mechanical & Performance Charts
Mechanical drawing and torque–speed curve are available for mounting dimensions and performance verification.

Technical Specifications
  • Series: 86BLA Series
  • Poles: 8
  • Phases: 3
  • Voltage Constant: 51.67 ±5% V/kRPM
  • Line Resistance: 2.5 ±5% Ω (20°C)
  • Line Inductance: 7.0 ±10% mH
  • Insulation Class: B 130°C
  • Weight: 4 kg

Applications
  • Industrial automation
  • Robotics and cobots
  • CNC and machining centers
  • Conveyors and material handling
  • Packaging and pick-and-place systems
