Electronically commutated motor CW180BLBT-10030-L1-H

BLDCbrushlessDC

Overview

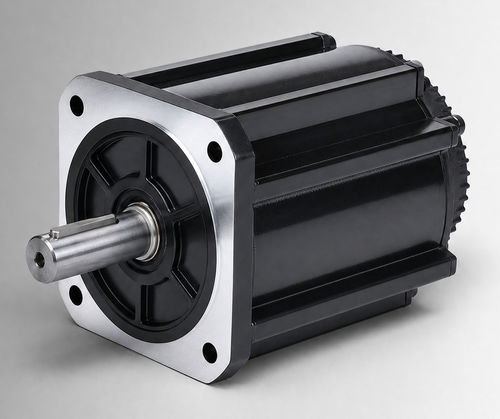

CW180BLBT-10030-L1-H is a 180mm framed high-power brushless DC motor rated at 3000 W, 24VDC, 10 N·m, and 3000 rpm. It is intended for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions, and brushed DC upgrade projects, while also supporting assessment for compact industrial equipment and auxiliary drives when voltage, load, duty cycle, installation interface, and environmental conditions are confirmed for the project.

Key Highlights

• 3000 W rated power
• 24VDC rated voltage
• 10 N·m rated torque at 3000 rpm
• 132±10% Arms rated current

Quick Specifications

• Rated Power: 3000 W
• Rated Voltage: 24VDC
• Rated Torque: 10 N·m
• Rated Speed: 3000 rpm
• Rated Current: 132±10% Arms
• Frame Size: 180mm

Electrical & Mechanical Specifications
Rated Power — 3000 W
Rated Voltage — 24VDC
Rated Torque — 10 N·m
Rated Speed — 3000 rpm
Rated Current — 132±10% Arms
Frame Size — 180mm
Torque Constant — 0.07±10% N·m/A
Rotor Inertia — 60±10% kg·m² × 10⁻⁴
Back EMF — 4.35±10% V/krpm
Line Inductance — Not specified; tolerance ±10%
Line Resistance — Not specified; tolerance ±10%
Body Length (L) — 170 mm
Body Length with Brake (LB) — 264 mm
Weight — 14.5/32 kg
Feedback Element (Option) — Magnetic Hall / Hall + 2500-line incremental encoder (optional)
Insulation Resistance — DC500V, >20 MΩ (Class F)
Dielectric Strength — 800VAC/1s/5mA
Operating Environment — Temperature: -20 to 40°C (-40 to 40°C optional); Humidity: 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding the stated temperature or altitude range)
Protection Class — IP54 (IP65 optional)
Part Number — CW180BLBT-10030-L1-H

Additional Product Images / Drawings

• Mechanical Drawing — 180mm Standard Structure (mechanical dimensions and mounting interfaces)
• Mechanical Drawing — 180mm Fan-Cooled Structure (mechanical dimensions and mounting interfaces)
• Torque-Speed Characteristics (graph)

Caractéristiques / Spécifications techniques

• Rated Power: 3000 W
• Rated Voltage: 24VDC
• Rated Torque: 10 N·m
• Rated Speed: 3000 rpm
• Rated Current: 132±10% Arms
• Frame Size: 180mm
• Torque Constant: 0.07±10% N·m/A
• Rotor Inertia: 60±10% kg·m² × 10⁻⁴
• Back EMF: 4.35±10% V/krpm
• Line Inductance: Not specified; tolerance ±10%
• Line Resistance: Not specified; tolerance ±10%
• Body Length (L): 170 mm
• Body Length with Brake (LB): 264 mm
• Weight: 14.5/32 kg
• Feedback Element (Option): Magnetic Hall / Hall + 2500-line incremental encoder (optional)
• Insulation Resistance: DC500V, >20 MΩ (Class F)
• Dielectric Strength: 800VAC/1s/5mA
• Operating Environment: Temperature: -20 to 40°C (-40 to 40°C optional); Humidity: 20% to 80% RH (non-condensing); altitude below 1000 m (derate when exceeding the stated temperature or altitude range)
• Protection Class: IP54 (IP65 optional)
• Part Number: CW180BLBT-10030-L1-H
