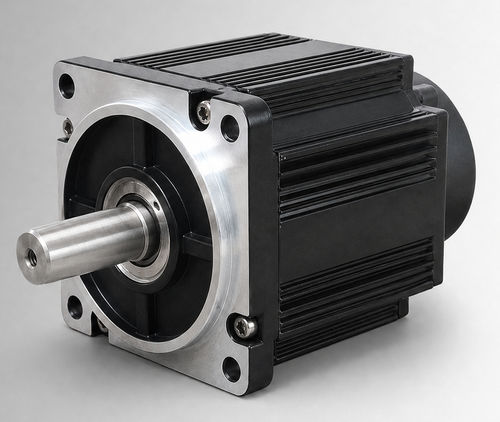

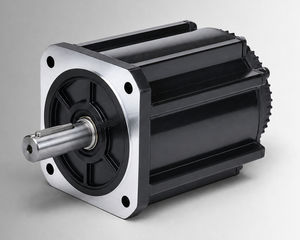

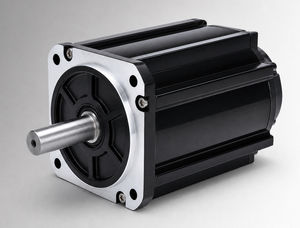

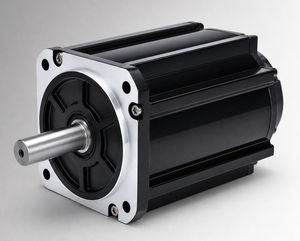

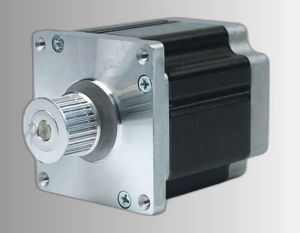

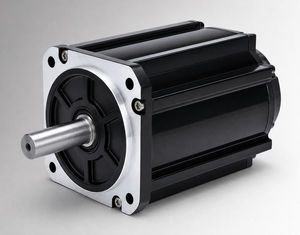

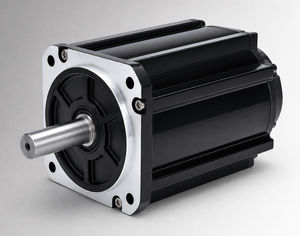

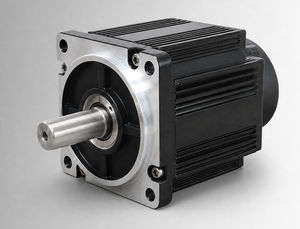

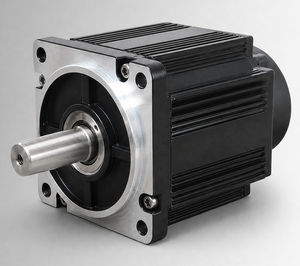

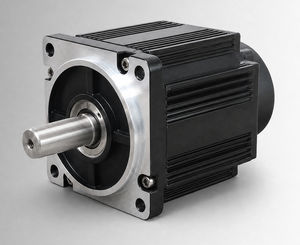

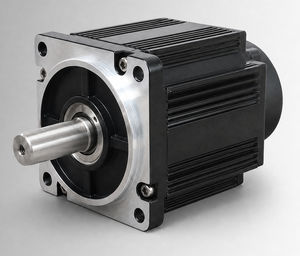

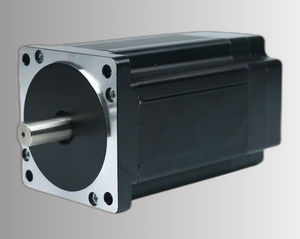

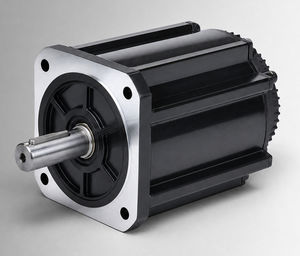

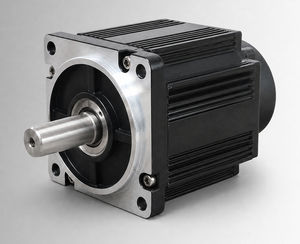

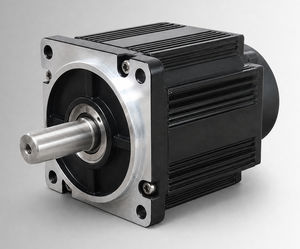

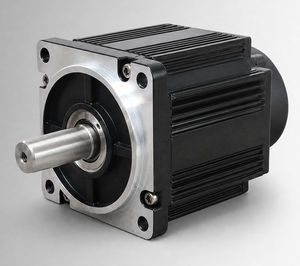

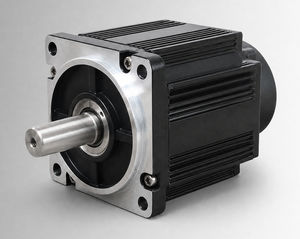

Brushless motor CW110BLBT-05030-L6-H

DCdirect currentBLDC

Overview
The CW110BLBT-05030-L6-H is a 110 mm framed high-power brushless DC (BLDC) motor rated 1550 W at 96 VDC, delivering 5 N·m at 3000 rpm. Designed for OEM evaluation and system integration, it targets electro-hydraulic pump drives, mobile work functions and brushed-DC replacement projects. It is also suitable for compact industrial equipment and auxiliary drives when electrical, mechanical and environmental requirements are met.

Key Highlights

• Rated power: 1550 W
• Rated voltage: 96 VDC
• Rated torque: 5 N·m @ 3000 rpm
• Rated current: 19 ±10% Arms

Datasheet & Documents
Product datasheet available for model CW110BLBT-05030-L6-H (see Download PDF on product page).

Visual References
Mechanical drawing (110 mm standard frame) and torque–speed characteristic curves are provided to support installation and performance assessment.

Electrical & Mechanical Specifications
Rated Power: 1550 W
Rated Voltage: 96 VDC
Rated Torque: 5 N·m
Rated Speed: 3000 rpm
Rated Current: 19 ±10% Arms
Frame Size: 110 mm
Torque Constant: 0.25 ±10% N·m/A
Rotor Inertia: 7.7 ±10% kg·m² × 10⁻⁴
Back EMF: 15.6 ±10% V/krpm
Line Inductance: 0.16 ±10% mH
Line Resistance: 0.024 ±10% Ω
Body Length (L): 126 mm
Body Length with Brake (LB): 171 mm
Weight: 4.14 / 6.25 kg
Feedback (option): Magnetic Hall / Hall + 2500-line incremental encoder
Insulation Resistance: DC 500 V, >20 MΩ (Class F)
Dielectric Strength: 800 VAC / 1 s / 5 mA
Operating Environment: -20 to 40 °C (optional -40 to 40 °C); 20–80% RH (non-condensing); altitude < 1000 m (derate if exceeding limits)
Protection Class: IP54 (IP65 optional)
Part Number: CW110BLBT-05030-L6-H

Applications

• Electro-hydraulic pump drives
• Mobile work functions
• Brushed DC motor upgrades
• Compact industrial equipment and auxiliary drives (subject to compatibility verification)

Technical Specifications

• Rated Power: 1550 W
• Rated Voltage: 96 VDC
• Rated Torque: 5 N·m
• Rated Speed: 3000 rpm
• Rated Current: 19 ±10% Arms
• Frame Size: 110 mm
• Torque Constant: 0.25 ±10% N·m/A
• Rotor Inertia: 7.7 ±10% kg·m² × 10⁻⁴
• Back EMF: 15.6 ±10% V/krpm
• Line Inductance: 0.16 ±10% mH
• Line Resistance: 0.024 ±10% Ω
• Body Length (L): 126 mm
• Body Length with Brake (LB): 171 mm
• Weight: 4.14 / 6.25 kg
• Feedback (option): Magnetic Hall / Hall + 2500-line incremental encoder
• Insulation Resistance: DC 500 V, >20 MΩ (Class F)
• Dielectric Strength: 800 VAC / 1 s / 5 mA
• Operating Environment: -20 to 40 °C (optional -40 to 40 °C); Humidity 20–80% RH; altitude below 1000 m
• Protection Class: IP54 (IP65 optional)
• Part Number: CW110BLBT-05030-L6-H
