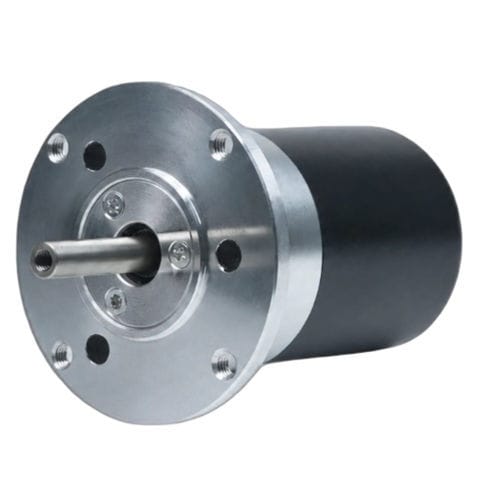

DC motor CW57BLMA74-100L2110-00

three-phase3-phaseBLDC

Overview
The CW57BLMA74-100L2110-00 is a 57mm (NEMA 23) 3-phase brushless DC motor delivering 100W at 24VDC (±10%) and capable of 11000 RPM. Designed for industrial automation, robotics and precision motion control, it supports compact integration and high-speed performance.

Key Highlights

• 100W rated power
• 24VDC ±10% supply voltage
• 86 mN·m rated torque at 11000 RPM
• 57mm (NEMA 23) frame size
• 3-phase brushless DC design for smooth operation

Summary Tiles
Rated Power | 100W
Rated Voltage | 24VDC ±10%
Rated Speed | 11000RPM
Rated Torque | 86 mN·m
Rated Current | 5A
Frame Size | 57mm (NEMA 23)

Product Datasheet
CW57BLMA74-100L2110-00

Electrical Specifications
Parameter | Value
Poles | 3
Phases | 3
Rated Voltage | 24VDC ±10%
Rated Power | 100W
Rated Speed | 11000RPM
Rated Torque | 86 mN·m
Rated Current | 5A
Line Resistance | 0.087 ± 5% Ω @ 20°C
Line Inductance | 0.08 ± 10% mH
Insulation Resistance | 100 MΩ @ 500 VDC
Insulation Class | B (130°C)
Control Method | Speed control
Frame Size | 57mm (NEMA 23)
Part Number | CW57BLMA74-100L2110-00

Mechanical & Performance
Mechanical drawing and torque-speed curve are provided for the 57mm BLDC motor series to aid integration and performance evaluation.

Technical specifications

• Model / Part Number: CW57BLMA74-100L2110-00
• Frame size: 57mm (NEMA 23)
• Rated power: 100W
• Rated voltage: 24VDC ±10%
• Rated speed: 11000 RPM
• Rated torque: 86 mN·m
• Rated current: 5 A
• Poles: 3
• Phases: 3
• Line resistance: 0.087 ±5% Ω at 20°C
• Line inductance: 0.08 ±10% mH
• Insulation resistance: 100 MΩ at 500 VDC
• Insulation class: B (130°C)
• Control method: Speed control
