Brushless motor CW-63BLW33-40L220-02

DC3-phaseBLDC

Overview

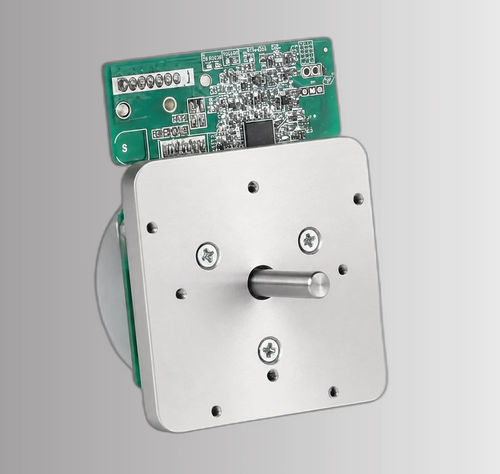

The CW-63BLW33-40L220-02 is a 63 mm outer-rotor 3-phase brushless DC motor engineered for direct-drive, low-speed high-torque applications. Rated for 24 VDC supply and 2000 RPM, it delivers a nominal torque of 200 mN·m at 2.75 A. The outer-rotor construction increases moment of inertia and smooths torque output, making this motor suitable for direct-drive fans, cooling modules and ventilation equipment. The unit provides an 8-lead interface with direction, brake, clock and load-detection signals for system integration.

Key Highlights

• 24 V DC outer-rotor BLDC motor, rated torque 200 mN·m
• Rated speed 2000 RPM, rated current 2.75 A
• 63 mm outer-rotor frame, 86 mm flange mounting
• 3-phase, 8‑lead interface: direction (CW/CCW), brake, clock, LD
• Insulation Class B (130°C), 10 MΩ insulation resistance @ 500 VDC
• Typical applications: direct-drive fans, cooling systems, ventilation equipment

Specifications Overview (cards)
Phases: 3
Rated Voltage: 24 VDC
Rated Current: 2.75 A
Rated Torque: 200 mN·m
Rated Speed: 2000 RPM
Frame Size: 63 mm outer rotor

Overview (table)
Model: CW-63BLW33-40L220-02
Type: Outer-rotor brushless DC motor
Phases: 3
Insulation Class: Class B (130°C)
Insulation Resistance: 10 MΩ @ 500 VDC
Weight: 300 g
Moment of Inertia: 100 g·cm²

Electrical Specifications
Rated Voltage: 24 VDC ±10%
Rated Current: 2.75 A
Rated Torque: 200 mN·m
Rated Speed: 2000 RPM
Phase Resistance: 0.32 ±3% Ω (20°C)
Phase Inductance: 0.12 ±50% mH

Mechanical Specifications
Outer Diameter: 63 ±0.2 mm
Flange Size: 86 ±0.2 mm
Shaft Diameter: φ6 -0.015/-0.005 mm
Shaft Length: 23.4 ±0.5 mm
Mounting Holes: 4-φ4.3 ±0.1 (M3 threaded)

Wire Interface (8 Leads)

• Lead 1: +24VDC
• Lead 2: +24VDC
• Lead 3: GND
• Lead 4: GND
• Lead 5: CW/CCW (Direction)
• Lead 6: BRAKE
• Lead 7: CLOCK
• Lead 8: LD (Load Detection)

Mechanical Drawing
Mechanical drawing image is provided for dimensions and mounting details.

Technical characteristics

• Model: CW-63BLW33-40L220-02
• Type: 63 mm outer-rotor, 3-phase BLDC
• Rated Voltage: 24 VDC ±10%
• Rated Current: 2.75 A
• Rated Torque: 200 mN·m
• Rated Speed: 2000 RPM
• Frame: 63 mm outer rotor; Flange: 86 ±0.2 mm
• Insulation: Class B (130°C); Insulation Resistance: 10 MΩ @ 500 VDC
• Weight: 300 g; Moment of Inertia: 100 g·cm²
• Wire Interface: 8-lead (power, GND, direction, brake, clock, load detection)
