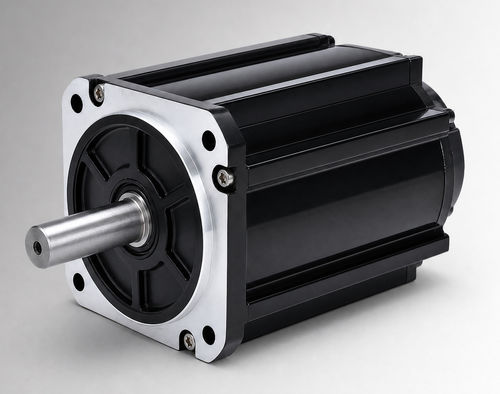

Brushless motor CW130BLBT-19020-L3-H

DC48 Vwith coder

Product Overview
CW130BLBT-19020-L3-H is a 130 mm frame high-power brushless DC motor rated 4000 W at 48 VDC, delivering 19 N·m rated torque at 2000 rpm. It is designed for OEM and system integration evaluation in electro-hydraulic pump drives, mobile work functions and brushed-DC upgrades. The motor can also be considered for compact industrial equipment and auxiliary drives once project voltage, load, duty cycle, installation interface and environmental conditions are confirmed.

Key highlights

• Rated power: 4000 W
• Rated voltage: 48 VDC
• Rated torque: 19 N·m @ 2000 rpm
• Rated current: 97±10% Arms
• Frame size: 130 mm

Electrical & mechanical specifications

• Rated power — 4000 W
• Rated voltage — 48 VDC
• Rated torque — 19 N·m
• Rated speed — 2000 rpm
• Rated current — 97±10% Arms
• Torque constant — 0.19±10% N·m/A
• Rotor inertia — 25.2±10% kg·m² × 10⁻⁴
• Back EMF — 11.8±10% V/krpm
• Line inductance — 0.07±10% mH
• Line resistance — 0.015±10% Ω
• Body length (L) — 181 mm; with brake (LB) — 221 mm
• Weight — 14 / 15.8 kg
• Protection class — IP54 (IP65 optional)
• Operating temperature — -20 to 40°C (optionally -40 to 40°C)
• Humidity — 20% to 80% RH (non-condensing)

Feedback & electrical safety

• Feedback options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Insulation resistance — DC500V, >20 MΩ (Class F)
• Dielectric strength — 800 VAC / 1s / 5 mA

Mechanical drawings & charts available

• Mechanical drawing — 130 mm standard structure
• Mechanical drawing — 130 mm fan-cooled structure
• Torque-speed characteristics chart

Typical applications

• Electro-hydraulic pump drives
• Mobile equipment and work functions
• Replacement/upgrade of brushed DC motors
• Compact industrial machinery and auxiliary drives
