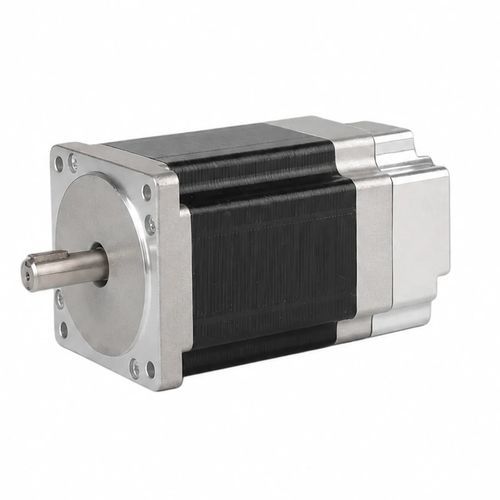

Brushless motor CW60BLBC97-250L440-00DCthree-phaseBLDC
Add to favorites
Compare this product
Characteristics
- Type
- DC, three-phase, brushless, BLDC
- Voltage
- 48 V
- Configuration
- with brake, compact, NEMA 24
- Number of poles
- 8-pole
- Other characteristics
- with brushless DC motor
- Power
0.25 kW
(0.34 hp)- Intensity
7 A
- Torque
Max.: 1.2 Nm
(0.885075 ft.lb)Min.: 0.6 Nm
(0.442537 ft.lb)- Rotational speed
4,500 rpm
(28,274.3339 rad.min-1)- Diameter
60 mm
(2.36 in)
Description
Product overview
The CW60BLBC97-250L440-00 is a 60 mm (NEMA 24) 3-phase brushless DC motor delivering 250 W and optimized for industrial automation, robotics and precision motion control. Typical rated speed is 4000 RPM with a compact 60 mm frame and an integrated brake option.
Key highlights
Quick specs
Electrical specifications
Poles: 8
Phases: 3
Rated Voltage: 48 ±10% VDC
Rated Power: 250 W
Rated Speed: 4000 RPM
Rated Torque: 0.6 N·m
Rated Current: 7 A
Max Speed: 4500 RPM
Max Torque: 1.2 N·m
Voltage Constant: 7.2 ±5% V/kRPM
Line Resistance: 0.3 ±5% Ω (20°C)
Line Inductance: 0.4 ±10% mH
Insulation Resistance: 100 MΩ (500 VDC)
Insulation Class: B (130°C)
Weight: 2.3 kg
Brake Voltage: 24 ±10% VDC
Brake Torque: 1.5 N·m
Frame Size: 60 mm (NEMA 24)
Part Number: CW60BLBC97-250L440-00
Drawings & curves
Mechanical drawing and torque-speed curve are available for the 60 mm BLDC series to assist with mounting, integration and performance selection.
Applications
The CW60BLBC97-250L440-00 is a 60 mm (NEMA 24) 3-phase brushless DC motor delivering 250 W and optimized for industrial automation, robotics and precision motion control. Typical rated speed is 4000 RPM with a compact 60 mm frame and an integrated brake option.
Key highlights
- Rated power: 250 W
- Rated voltage: 48 ±10% VDC
- Rated torque: 0.6 N·m at 4000 RPM
- Frame size: 60 mm (NEMA 24)
- 3-phase brushless design for smooth, low-maintenance operation
Quick specs
- Rated Power: 250 W
- Rated Voltage: 48 ±10% VDC
- Rated Speed: 4000 RPM
- Rated Torque: 0.6 N·m
- Rated Current: 7 A
- Frame Size: 60 mm (NEMA 24)
- Part Number: CW60BLBC97-250L440-00
Electrical specifications
Poles: 8
Phases: 3
Rated Voltage: 48 ±10% VDC
Rated Power: 250 W
Rated Speed: 4000 RPM
Rated Torque: 0.6 N·m
Rated Current: 7 A
Max Speed: 4500 RPM
Max Torque: 1.2 N·m
Voltage Constant: 7.2 ±5% V/kRPM
Line Resistance: 0.3 ±5% Ω (20°C)
Line Inductance: 0.4 ±10% mH
Insulation Resistance: 100 MΩ (500 VDC)
Insulation Class: B (130°C)
Weight: 2.3 kg
Brake Voltage: 24 ±10% VDC
Brake Torque: 1.5 N·m
Frame Size: 60 mm (NEMA 24)
Part Number: CW60BLBC97-250L440-00
Drawings & curves
Mechanical drawing and torque-speed curve are available for the 60 mm BLDC series to assist with mounting, integration and performance selection.
Applications
- Industrial automation and conveyors
- Robotics and collaborative robots (cobots)
- Precision positioning and indexing systems
- Small machine tools and test benches
Catalogs
Other NEOTON MOTOR products

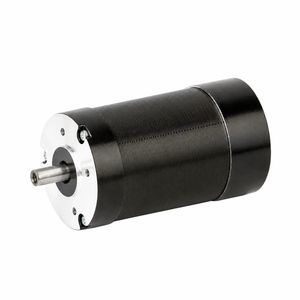

BLDC Motors
