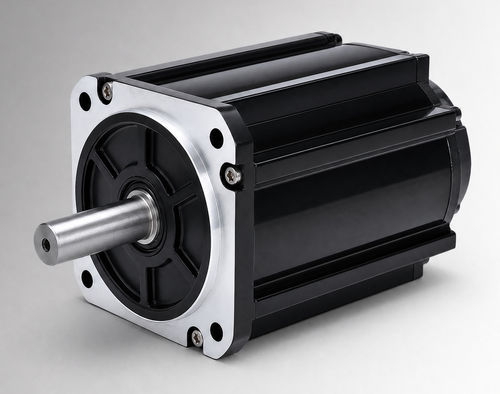

Brushless motor CW130BLBT-15020-L6-H

DCBLDC96 V

Product overview
CW130BLBT-15020-L6-H is a 130 mm framed brushless DC (BLDC) motor rated 3150 W, 96 VDC, 15 N·m at 2000 rpm. It is intended for OEM and system-integration evaluation in electro-hydraulic pump drives, mobile work functions, brushed-DC upgrade projects and compact industrial equipment, subject to verification of voltage, load, duty cycle, installation interface and environmental conditions for the application.

Key highlights

• 3150 W rated power
• 96 VDC rated voltage
• 15 N·m rated torque at 2000 rpm
• Rated current 48±10% Arms
• Frame size: 130 mm

Quick data

• Part number: CW130BLBT-15020-L6-H
• Frame size: 130 mm
• Rated speed: 2000 rpm
• Rated current: 48±10% Arms
• Body length (L): 166 mm; with brake (LB): 221 mm
• Weight: 11 kg / 12.8 kg (variants)

Electrical & Mechanical Specifications

• Rated power: 3150 W
• Rated voltage: 96 VDC
• Rated torque: 15 N·m
• Rated speed: 2000 rpm
• Rated current: 48±10% Arms
• Torque constant: 0.31±10% N·m/A
• Rotor inertia: 17±10% kg·m² × 10⁻⁴
• Back EMF: 18.9±10% V/krpm
• Line inductance/resistance: not specified; tolerance ±10%
• Insulation resistance: DC 500 V, >20 MΩ (Class F)
• Dielectric strength: 800 VAC / 1 s / 5 mA
• Feedback options: Magnetic Hall; Hall + 2500-line incremental encoder (optional)
• Protection class: IP54 (IP65 optional)
• Operating environment: -20 to 40 °C (option -40 to 40 °C); humidity 20–80% RH non-condensing; altitude <1000 m (derate above stated ranges)

Available drawings & charts

• Mechanical drawing — 130 mm standard structure
• Mechanical drawing — 130 mm fan-cooled structure
• Torque-speed characteristics

Applications & notes

• Designed for evaluation in electro-hydraulic pump drives, mobile equipment actuators, auxiliary drives and brushed-DC replacement projects.
• Confirm electrical interface, mounting, cooling and duty cycle before integration.
• Options: encoder feedback, braking version, IP65 protection and extended temperature range.
